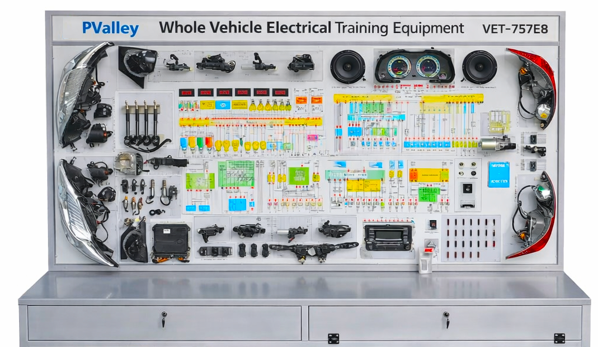

Brand: PValley
Model: VET-757E8
Country of Origin: China
Country of Assemble/Manufacture: Bangladesh
Features:
- The equipment’s structural components utilize 1.5mm thick cold-rolled steel plates manufactured through precision stamping, achieving both aesthetic appeal and structural durability.
- Its welded steel frame chassis features a high-quality spray-coated finish and incorporates self-locking casters, ensuring secure positioning while maintaining mobility within training, constructed from high-grade aluminum-plastic composite panels, the whole vehicle electrical training equipment offers superior resistance to impact, contamination, fire, and moisture.
- The surface undergoes a specially formulated primer coating process for enhanced durability.
- The panel features a full-color, fade-resistant circuit diagram, allowing students to intuitively compare theoretical schematics with actual components, thereby deepening their understanding of each electrical system’s operational principles.,
- The whole vehicle electrical training equipment features a fully operational, real automotive electrical system that accurately simulates the structure and functionality of various subsystems.
- When powered on, users can operate the electrical switches and buttons on the teaching panel to observe actual working processes of key automotive systems, including: the engine electronic control system, instrument cluster, lighting system, wiper system, horn, ignition system, power windows, door locks, audio system, starter, and charging system.,
- The Whole Vehicle Electrical Training Equipment is based on actual vehicle electrical systems, comprehensively demonstrating the composition and working principles of various automotive electrical systems including: engine anti-theft system, instrument cluster system, lighting system, wiper system, horn system, ignition system, power window system, door lock system, audio system, starting system, and charging system.
- This automotive training equipment is designed to meet the teaching requirements for both theoretical instruction and maintenance training of complete vehicle electrical system
General Specification:
Body Material:
Printed Front Side Sheet
Sheet Type: Digital
Country of origin: China
Feature:
- Sheet number 26
- Storage Printed temperature 300°c
- Color White/Silver
Hard Round support board or Plastic Sheet
Sheet Type: Digital
Country of origin: Pakistan
Feature:
- Sheet thickness 10mm
- Two-Part Combination (Transparent/white)
- UV Printout
Safety Breaker
Brand: Hyundai
Country of origin: South Korea
Feature:
- Human Body Sense safety
- Current error detection range is 20mA
- Soft tripping
- Low noise cut off
Panel Box
Brand: Madhav Enterprise
Country of origin: Indian
Features:
- Shape: Rectangular
- Surface Finish: Smooth
- High-quality raw material
Best structure
Brand: Altech
Country of origin: Bangladesh
Feature:
- Sheet thickness 5mm
- Sheet (Silver/white)
- Square Shape
Power Monitoring
Brand: UNI-T
Country of origin: China
Feature:
- Self-operating voltage 12V
- Self-Consumption Current 20mA
- Power Nature
Use Connector
Brand: ZHT
Country of origin: China
Feature:
- Banana Female Connector Diameter 2mm
- Banana Male Connector Diameter 2mm
Technical Specification:
- Dimensions: 2400 × 700 × 1900 mm,
- Power Supply: DC 12V,
- Working Temperature: -40℃～+50℃,
- Voltage: AC 220V, Power: 2.2KW,
- Storage Battery : 24VDC/30A
- DC Self Stater With 24VDC/5A Motor
- Speed: 1420r/min,
- Steel Pipe: 40*40*3mm,
- Steel Pipe: 40*40*3mm,
- Steel Pipe: 40*40*3mm,
- Cabinet: 1.5mm cold plate stamping, maintenance door on the back,
- Moving Casters: 100*60mm,
UNIT–1: Battery & Power Supply System
Main Components:
- 12V Lead-Acid / Maintenance Free Battery
- Battery Charger
- Fuse Box & Relays
- Main Switch Panel
- Ammeter & Voltmeter
🔹 UNIT–2: Starting System
Main Components:
- Starter Motor (DC Series Motor)
- Starter Relay / Solenoid
- Ignition Switch
- Engine Simulation Flywheel
🔹 UNIT–3: Charging System
Main Components:
- Alternator
- Rectifier Diode Pack
- Voltage Regulator (IC Regulator)
- Drive Belt Arrangement
🔹 UNIT–4: Ignition System (Petrol Engine Type)
Main Components:
- Ignition Coil
- Distributor / CDI Unit
- Spark Plug
- Crank Position Sensor (Simulation)
🔹 UNIT–5: Lighting & Signaling System
Main Components:
- Head Lamp (High/Low Beam)
- Tail Lamp
- Indicator Lamp
- Hazard Switch
- Horn Relay
🔹 UNIT–6: Instrumentation System
Main Components:
- Speedometer (Simulated)
- Fuel Level Indicator
- Temperature Gauge
- Tachometer
- Warning Lamps Panel
🔹 UNIT–7: Sensor & Actuator System
Main Sensors:
- Throttle Position Sensor
- Mass Air Flow Sensor
- Manifold Absolute Pressure Sensor
- Oxygen Sensor
- Crankshaft Position Sensor
🔹 UNIT–8: Electronic Control Unit (ECU) System
Main Components:
- Engine Control Unit
- Injector Driver Circuit
- Fuel Injector
- Ignition Driver
🔹 UNIT–9: Wiper & Power Window System
Main Components:
- Wiper Motor
- Wiper Switch
- Power Window Motor
- Limit Switch
🔹 UNIT–10: Central Locking & Safety System
Main Components:
- Central Locking Actuator
- Remote Module
- Buzzer
- Seat Belt Warning
Final Experiment List (25 Experiments)
- Study of 12V automotive battery construction and working.
- Battery voltage (OCV), specific gravity, charging & discharging test.
- Fuse rating, protection system & voltage drop measurement.
- Study of starter motor and solenoid operation.
- Starter circuit wiring, current measurement & cranking test.
- Alternator construction and working principle.
- Alternator output voltage test at different RPM.
- Rectifier diode and voltage regulator testing.
- Charging system troubleshooting and fault diagnosis.
- Working and testing of ignition coil & spark generation.
- Ignition timing measurement and distributor study.
- Ignition system fault finding.
- Headlight high/low beam and brake light operation.
- Indicator flasher and horn relay circuit study.
- Lighting circuit troubleshooting.
- Working and testing of fuel level & temperature sensors.
- Speedometer pulse and tachometer RPM measurement.
- Dashboard warning indicator testing.
- Sensor voltage measurement (TPS, MAP, Oxygen sensor).
- Sensor characteristics and fault simulation.
- Study of ECU block diagram and I/O signals.
- Injector pulse width measurement and ECU testing.
- Scan tool interfacing and fault code simulation.
- Wiper motor speed control and intermittent operation.
- Power window, central locking & safety interlock system testing.
Standard Accessories;
- Connecting Cord: 01 Set
- Power Cord: 01 No
- Connecting Wire & Cable
- Complete 5 days Training Included
- User Manual or User Guide
Warranty: 1 (One) year with services;
