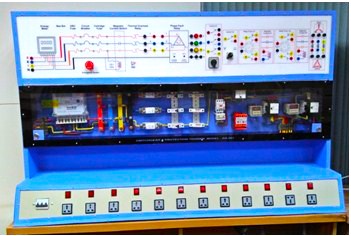

Switchgear & Protection Trainer

Brand: PValley

Model: SWP-42T5

Country of Origin: China

Assemble/Manufacturer: Bangladesh





General Specification:

Body Material:

Printed Front Side Sheet

Sheet Type: Digital
Country of origin: China
Feature:

• Sheet number 26
• Storage Printed temperature 300°c
• Color White/Silver

Hard Round support board or Plastic Sheet

Sheet Type: Digital
Country of origin: Pakistan
Feature:

• Sheet thickness 10mm
• Two-Part Combination (Transparent/white)
• UV Printout

Safety Breaker
Brand: Hyundai
Country of origin: South Korea
Feature:

• Human Body Sense safety
• Current error detection range is 20mA
• Soft tripping
• Low noise cut off

Panel Box

Brand: Madhav Enterprise
Country of origin: Indian

Features:

• Shape: Rectangular
• Surface Finish: Smooth
• High-quality raw material

Best structure

Brand: Altech
Country of origin: Bangladesh
Feature:

• Sheet thickness 5mm
• Sheet (Silver/white)
• Square Shape

Power Monitoring

Brand: UNI-T
Country of origin: China
Feature:

• Self-operating voltage 12V
• Self-Consumption Current 20mA
• Power Nature

Use Connector

Brand: ZHT
Country of origin: China
Feature:

• Banana Female Connector Diameter 13mm
• Banana Male Connector Diameter 4.5mm

Working area:

• Working area: 40 * 25 inch

Technical Specification:

• Power Supply:
• Rated Input Voltage: 380 V AC Three Phase 4-wire;
• Rated Output Voltage: 380 V AC Three Phase 4-wire;
• Safety: Short-Circuit Protection, Emergency Stop, Earth Facility Error Current protection.

Short-Circuit Protection

1. Fast-acting MCB/fuse provided at input and output stages
2. Protects equipment and users from over-current and short-circuit faults

• Automatic disconnection of supply during fault condition

    Emergency Stop

1. Prominent Emergency Stop (E-STOP) push button on front panel
2. Manually cuts off complete power supply instantly

• Red mushroom-head type with twist-to-release mechanism

Earth Leakage Protection (ELCB/RCCB)

1. Built-in Earth Leakage Circuit Breaker (ELCB/RCCB)
2. Rated sensitivity: 30 mA (human safety standard)

• Rated current: 30–63 A (as per system requirement)

1. Trip time: ≤ 30 ms
2. Provides protection against earth fault leakage current
3. Automatically disconnects supply during insulation failure or earth fault

• Ensures operator safety and prevents electric shock
• Multiple Parameter Protection Relays: Device type Digital
• Digital Over-Voltage, Under-Voltage & Over-Current Protection Relay with integrated breaker control
• Continuously monitors line voltage and load current parameters
• Adjustable over-voltage, under-voltage, and over-current trip settings
• High-accuracy digital measurement with LED/LCD display indication
• Automatic trip command to circuit breaker during abnormal conditions
• Fast response time for effective equipment and user protection
• Manual and automatic reset facility
• Visual fault status and alarm indication
• Suitable for single-phase / three-phase systems (as per configuration)
• Ensures safe operation and prevents damage due to electrical faults

Switching Devices: MCBs (Miniature Circuit Breakers) & Related Others.

• Rated operating voltage: 230/415 V AC
• Rated current range: 6 A to 63 A
• Tripping characteristics: Type B / Type C / Type D
• Breaking capacity: 6 kA / 10 kA (as per IEC standard)
• Thermal trip for overload protection
• Magnetic trip for short-circuit protection
• Single-pole / Double-pole / Triple-pole / Four-pole configurations
• DIN-rail mountable, modular construction
• Operating frequency: 50/60 Hz
• Mechanical endurance: ≥ 10,000 operations
• Electrical endurance: ≥ 6,000 operations
• Compliance with IEC 60898 / IS standards
• Operating temperature range: –5 °C to +55 °C

• Loads: Resistive, Inductive and Capacitive.

Resistive Load

• Three selectable resistance values
• High-power wire-wound resistors
• Suitable for AC/DC operation

Inductive Load

• Three selectable inductance values
• Laminated core / choke type inductors
• Designed for AC operation

Capacitive Load

• Three selectable capacitance values
• Power-grade polypropylene capacitors
• Suitable for AC operation
• Measurement: Digital Meters (Voltmeter, Ammeter, Energy Meter),

Voltmeter

• Measuring range: AC/DC (as applicable)
• Accuracy class: ±1.0 / ±0.5
• Display type: Analog / Digital
• Input impedance: High impedance
• Rated frequency: 50/60 Hz
• Over-range protection provided

Ammeter

• Measuring range: AC/DC (as applicable)
• Accuracy class: ±1.0 / ±0.5
• Display type: Analog / Digital
• Current sensing: Shunt / CT based
• Rated frequency: 50/60 Hz
• Over-current protection provided

Energy Meter

• Measurement type: Active energy (kWh)
• Voltage rating: 230 V / 415 V AC
• Current rating: 5–20 A / 10–40 A
• Accuracy class: Class 1.0 / Class 0.5
• Frequency: 50/60 Hz
• Digital LCD display
• Pulse / LED energy indication
• Complies with IEC standards
• Motor Protection: Specific modules for Motor Protection
• Dedicated Motor Protection Module for AC induction motor safety
• Protection functions:
• Over-current protection, Thermal protection, Under-voltage protection, Over-voltage protection
• Single phasing / phase failure protection
• Phase sequence protection
• Adjustable trip current and time delay settings
• Thermal memory function for motor heating effect
• Automatic and manual reset facility
• Trip status LED / digital indication
• Output relay contact for contactor control
• Suitable for single-phase / three-phase motors (as per configuration)
• Rated supply voltage: 230 V / 415 V AC, 50/60 Hz
• Conforms to IEC motor protection standards
• Control Board:
  • Three Phase Energy Meter: 1 EA;
  • BAS Bar: 4EA;
  • Circuit Breaker: 3EA (10Amp);
  • Cartridge Fuse: 3EA (10Amp);
  • HRC Fuse: 3EA (16Amp);
  • Thermal Overload Relay: 1 EA;

• • Digital Timer: 2EA;
• Magnetic Contractor: 3EA;
• Selector Switch:2 EA;
• Relay: 2 EA;
• Phase fault Relay: 1EA;
• Other Devices:
  • 4mm safety jack Connection facility;
  • Short Circuit Protection Facility;
  • 1 Phase AC Load Connection Facility (Power Socket);
  • Size: 5 Feet x 1.5 Feet x 2.5 Feet (Length x Width x Height);

Accessories:

• 4mm safety banana plug -1 Set;
• Three Phase Induction Motor, 2HP (Star-Delta)/Experimental – 1 pcs;
• 3 Phase Variac -1 Pcs
• Power Cord: 01 set
• Connecting Wire & Cable
• Complete 5 days of Training Included
• User Manual or User Guide

Protection:

Under voltage, Supply overvoltage, Drive overload, Ground fault, etc.
