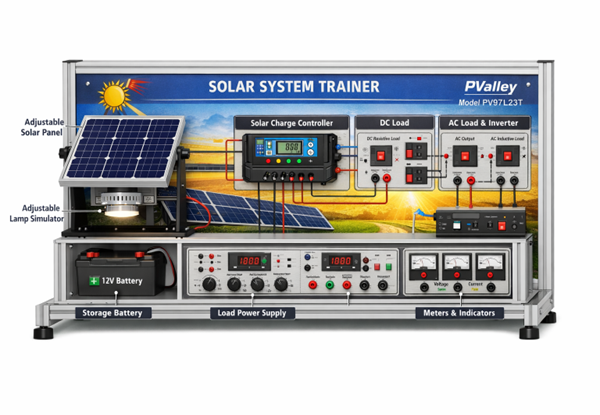

Solar System Trainer

Brand: PValley

Model: PV97L23T

Country of origin: China

Assemble/Manufacturer: Bangladesh





Technical Specification

Configuration

• Frame structure Table Type
• Complete aluminum profile as support frame for solar cell and simulated light source
• Engraved and colorized printed panel, inserted into grooved aluminum profile
• Overall size: 1190 mm × 455 mm × 555 mm (approx.)

Power Supply

• AC 220 V input with Safety Breaker.
• Human Body Sense safety
• Current error detection range is 20mA
• Soft tripping
• Low noise cut off

Panel Box

Brand: Madhav Enterprise
Country of origin: Indian

Features:

Shape: Rectangular

Surface Finish: Smooth

High quality raw material

Power Monitoring

Brand: UNI-T
Country of origin: China
Feature:

Self-operating voltage 12V

Self-Consumption Current 20mA

Use Connector

Brand: ZHT
Country of origin: China
Feature:

Banana Female Connector Diameter 2mm

Banana Male Connector Diameter 2mm

Photovoltaic System

• Solar cell ×2
• Indoor: 1 No, Pmax 50 W
• Outdoor: 1 No, Pmax 200 W
• Voltage at Pmax: 18 V
• Open circuit voltage: 21.6 V
• Simulated light source ×2
• 500 W halogen tungsten lamps with circular connector
• Flexible light support
• Up / down: +90° ~ −45°
• Left / right: +90° ~ −90°
• Rotating: ±180°
• Separated light ON/OFF switch ×2
• Light intensity control knob

Instrument Unit

• AC voltage meter: 0–450 V
• DC voltage meter: 0–50 V
• AC current meter: 0–3 A
• DC current meter: 0–5 A
• Battery Monitoring System: V, I, W, Wh
• Panel Monitoring System: V, I, W, Wh

Load Unit

• DC 12 V inductive load
• Sleeve bearing type fan 0.2 A / 4500 RPM Protective cover
• AC 220 V inductive load
• Dual ball bearing type fan
• 5 W / 4700 RPM
• Protective Power ON/OFF switch
• DC 12 V resistive load Angle adjustable 5 W LED white lamp
• AC 220 V resistive load Angle adjustable 3 W LED white lamp
• ON/OFF switch Mobile charger
• Variable resistor load 0 Ω – 110 Ω adjustable
• DC motor 12 V With rotary disc
• Pilot lamp DC 5 V

Maximum Power Point Tracking Charge Controller(MPPT)

• Controller working voltage: 8–32 V
• System related voltage: 12 V / 24 V automatic identification
• Battery type: storage battery (maintenance free / colloid / liquid), lithium battery
• Rated current: 30 A
• Max PV voltage: 60 V
• Max PV input power:180 W (12 V)/ 360 W (24 V)
• Balance voltage: 14.6 V
• Boost voltage: 14.4 V
• Floating charge voltage: 13.8 V
• Low voltage cut-off recovery voltage: 12.6 V
• Low voltage cut-off voltage: 11.1 V
• Step-Up Inverter (Grid Off)
• DC 12 V / 24 V input
• Output: AC 220 V
• ON/OFF knob
• Fuse protector
• Power: 300 W (max)-
• Quantity: 1 No
• Step-Down Converter
• DC 12 V input
• Output: DC 5 V
• LCD display with setting buttons
• USB interface
• Storage Battery
• 12 V /30 Ah maintenance free sealed LiFePO₄ battery – Quantity: 2 Nos
• PWM Solar Charge Controller – 12 V/20 A Quantity: 1 No
• Conductor cross section:
• 16 AWG tinned copper wire Rating: 3 kV, 20 A with axial socket

Experiments

• Study Solar panel PV characteristics.
• Study the operation of the Load power supply.
• Study the operation of the Storage battery charging.
• Study the operation of solar panel output voltage test under different height/angle/intensity.
• Study the operation of DC resistive and inductive load.
• Study the operation of AC resistive and inductive load.
• Study of solar panel construction and working principle.
• Measurement of open-circuit voltage (Voc) of a solar panel.
• Measurement of short-circuit current (Isc) of a solar panel.
• V–I characteristic curve of a solar panel under constant illumination.
• Effect of light intensity on solar panel output voltage and current.
• Effect of tilt angle on solar panel power output.
• Effect of panel height/distance from light source on output power.
• Maximum power point (MPP) determination of a solar panel.
• Efficiency calculation of a solar photovoltaic module.
• Solar panel output performance under indoor light source.
• Solar panel output performance under outdoor sunlight.
• Charging characteristics of a storage battery using a solar panel.
• Solar charge controller operation and testing.
• Battery charging efficiency under different solar conditions
• Discharging characteristics of battery with DC resistive load.
• Performance of solar panel with DC inductive load.
• Performance analysis of AC resistive load using inverter.
• Performance analysis of AC inductive load using inverter.
• Integrated load operation using solar panel, battery, and inverter.
• Comparison of solar panel output under different shading conditions.
• Temperature effect on solar panel voltage and power.
• Series and parallel connection of solar panels and performance comparison.
• Power loss analysis in solar PV system components.
• System efficiency evaluation of complete solar PV trainer setup.

Standard accessories

• Power cord
• User Manual – 1 No
• 5 Days In-House Training
• Connecting Wire – 1 set
• Safety Whole Sealing Cable

Warranty: One Year
