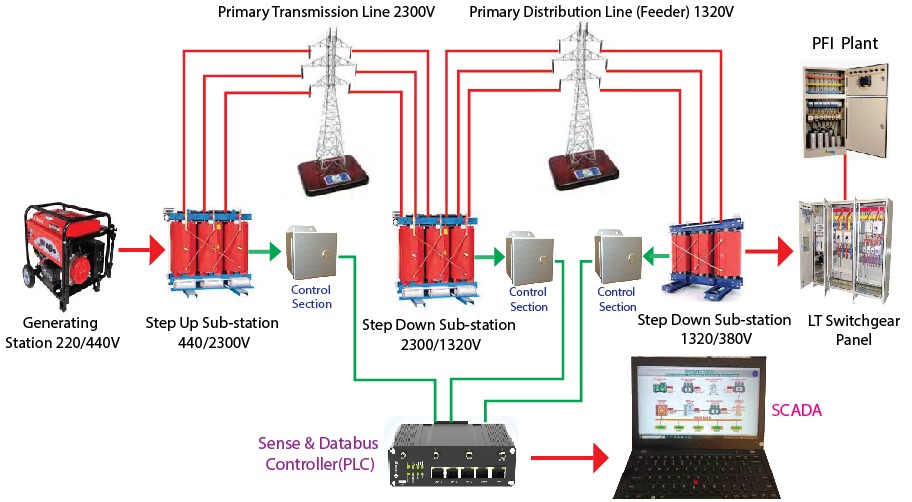

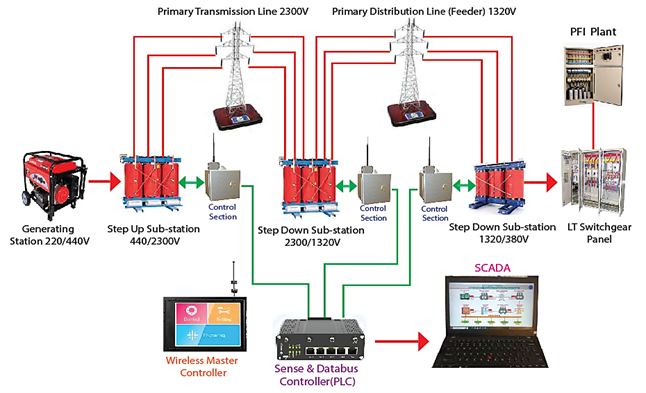

Brand: PValley
Model: PSCADA-01
Country of Origin: Taiwan
Assemble/Manufacturer: Bangladesh
Technical Specification:
- Measurement of Voltage, Current & Power of Generating Station, Step Up Substation, Transmission Line, Step Down Substation, Distribution Line and Load at Software
- Control of all Stations from Software;
SCADA System:
- SCADA (Supervisory Control and Data Acquisition) System with Original licensed software;
- Input Power: AC 220V/440V, 50 Hz;
- PLC: SIMATIC S7-1200;
- CPU1214C AC/DC/Relay,
- PS=24VDC,
- DI=14,
- DO=10(Relay),
- AI=2,
- Model/Size – 6ES7214-1BG40-0XB0;
- Brand – Siemens;
- Analog Input Module: – 6ES7231-4HF32-0XB0 – 3 Pcs;
- IoT 2050 Module: 1 Pcs;
- Processor: Texas Instruments ARM AM65x SoC, 64-bit (Dual-core A53 for Basic, Quad-core A53 for Advanced), 1 GHz.
- Main Memory: 1 GB DDR4 RAM (Basic) / 2 GB DDR4 RAM (Advanced) / 4 GB DDR4 RAM (SM variant).
- Storage (Internal): 16 GB eMMC (Advanced & SM variants only).
- Storage (External): MicroSD card slot (for OS and data).
- Real-time Clock (RTC): Battery-backed (Advanced & SM models).
- Interfaces and Connectivity
- Ethernet: 2 x Gigabit Ethernet (RJ45), capable of running in separate networks.
- USB: 2 x USB 2.0 (Note: Some variants feature 1x USB 3.0 and 1x USB 2.0).
- Serial: 1 x COM port, configurable for RS232/422/485.
- Video: 1 x DisplayPort (DP) for connecting monitors.
- Expansion:
- 1 x mPCIe slot (full size) for wireless modules (Wi-Fi/4G/3G).
- 1 x Arduino Uno R3 shield interface.
- SCADA Software: Win CC or any other;
- Real-time data acquisition, monitoring, and visualization of field devices (PLCs, RTUs, IEDs).
- Centralized supervisory control with remote start/stop and set-point adjustment.
- Alarm and event management with priority classification, logging, and acknowledgment.
- Historical data logging, trending, and reporting for performance analysis.
- Communication support for standard industrial protocols (Modbus, OPC, DNP3, IEC).
- User management, security access levels, and system diagnostics for reliable operation.
- Communication Cable- RS485;
- Converts USB to RS485 with FTDI chipset for stable performance
- Supports baud rates from 300bps to 921Kbps
- Built-in static (15KV ESD) and surge (600W) protection
- Automatic data flow control with zero-delay transmission
- Magnetic Contactor: 10 Pcs;
Dimension: 50mm (W) x 90mm (H) x 70mm (D)
- Coil Drive Voltage 230V
- channel 3P
- Rated current 100A
- Rated Operating Voltage 3kV to 12kV (AC)
- Number of Poles Commonly, 3-pole for three-phase systems, 4-pole.
- Frequency Standard models operate at 50/60 Hz, but specialized versions
- PT: 5 Pcs:
Dimension: 115mm (W) x 145mm (H) x 50mm (D)
Brand: Green Power
Model: CT-5000/1A
Country of origin: Bangladesh
Features:
- Voltage Ratings: Rated Primary Voltage 33kV,
- Rated Secondary Voltage 63V,
- Highest system voltage 36kv
- Frequency typically 50Hz
- CT: 15 Pcs:
Dimension: 115mm (W) x 145mm (H) x 50mm (D)
Brand: Green Power
Model: CT-5000/1A
Country of origin: Bangladesh
Features:
- Rated Primary Current up to 5000 A
- Rated Secondary Current typically 1 A or 5 A.
- Transformation Ratio (CT Ratio) between the rated primary and secondary currents (1000 A / 5 A or 2000 A / 1 A).
- Rated Voltage and Insulation Level The maximum system voltage 400 kV
- Frequency is typically 50 Hz or 60 Hz
- Rated Primary Current up to 5000 A
Laptop Configuration:
Brand: HP
Model: HP 14-ep0134TU
Country of origin: USA
- Laptop Configuration: Processor
- Brand: Intel, Generation,13th (Intel)
- Processor Model Core i7 1355U, CPU Cache 12MB
- NPU: No,
- Display Size (Inch):14,
- Display Type: FHD LED Display,
- Display Resolution:1920×1080,
- Touch Screen: No,
- RAM: 16GB, RAM Type DDR4,
- Solid-State Drive (SSD) 512GB
- Graphics Chipset Intel Iris Xe Graphics Graphics Memory Shared,
- WiFi Realtek Wi-Fi 6 (2×2),
- Bluetooth Bluetooth 5.4,
- Keyboard Back-lit: Yes,
- Finger Print Sensor: No,
- Operating System Win-11 Home,
- Color Silver,
- Weight (Kg) 1.41 kg,
Warranty Details: 2 Years,
Estimated Warranty Claim Duration 20 Days. - It may take additional time up to 40 days
- Built in Graphics Card and genuine software’s;
- Wi-Fi Router as required;
Power System:
- Generating Station 380V;
Brand: Sakura
Model: LG7500EX-F
Country of origin: Bangladesh
- Power: 10KVA (8KW),
- Voltage1: 380V, 3-ϕ, 50 Hz;
- Voltage2: 220V, 1-ϕ, 50 Hz;
- Gasoline Generator or Diesel Generator;
- 4 Stroke Single Cylinder Engine;
- Engine Type: Horizontal;
- Self-Start Engine
- Transceiver Module (Wire/Wireless)
- Processor:ESP32-C3 (32-bit RISC-V single-core), up to 160 MHz.
- Memory:4MB Flash, 400KB SRAM, 384KB ROM.
- Connectivity:4GHz Wi-Fi (802.11b/g/n), Bluetooth 5.0(LE).
- Power:Ultra-low deep sleep (~43µA); supports USB-C.
- Peripherals:11 GPIOs, 4 ADC channels (12-bit), PWM, 1x I2C, 1x SPI, 2x UART (one USB-Serial).
- Security:Hardware acceleration for AES, SHA, RSA, Secure Boot
- Step Up Sub-station 380/2300V;
Brand: Green Power
Model: SUT-380/2300
Country of origin: Bangladesh
- Transformer: – 1 Nos;
- Rating: 380V/2300V, 10 KVA;
- Type: Dry Type Air Cooling;
- Transceiver Module (Wire/Wireless)
- Processor:ESP32-C3 (32-bit RISC-V single-core), up to 160 MHz.
- Memory:4MB Flash, 400KB SRAM, 384KB ROM.
- Connectivity:4GHz Wi-Fi (802.11b/g/n), Bluetooth 5.0(LE).
- Power:Ultra-low deep sleep (~43µA); supports USB-C.
- Peripherals:11 GPIOs, 4 ADC channels (12-bit), PWM, 1x I2C, 1x SPI, 2x UART (one USB-Serial).
- Security:Hardware acceleration for AES, SHA, RSA, Secure Boot
Panel Board:
- Digital Ammeter (AC): 5A – 1 Nos;
- Digital Voltmeter (AC): 500V – 1 Nos;
- Multifunctional Digital Watt Meter (W, VAR, VA, IL, IP, VL, VP, Cosθ): – 1 Nos;
- Primary Transmission Line 2300V;
Brand: Green Power
Model: PRT-2300
Country of origin: Bangladesh
Span: 2 meters;
Tower: – 2 Nos;
- Materials: Stainless Steel (1- x 1- Angle Bar),
- Dimension: 2 Feet x 2 Feet x 9 Feet;
- of Cross Arm: 3;
- of Circuit: 2 (1 Live and 1 Demo);
- Earth Wire on Top of the Tower with Lightning Arrester;
- Transceiver Module (Wire/Wireless)
- Processor:ESP32-C3 (32-bit RISC-V single-core), up to 160 MHz.
- Memory:4MB Flash, 400KB SRAM, 384KB ROM.
- Connectivity:4GHz Wi-Fi (802.11b/g/n), Bluetooth 5.0(LE).
- Power:Ultra-low deep sleep (~43µA); supports USB-C.
- Peripherals:11 GPIOs, 4 ADC channels (12-bit), PWM, 1x I2C, 1x SPI, 2x UART (one USB-Serial).
- Security:Hardware acceleration for AES, SHA, RSA, Secure Boot
Insulator:
- Disk Type Insulator (String);
- No of Disk: 18 each Tower;
- Materials: Wooden;
- Color: Coffee; `
- Size: 1x4RM;
- Materials: Copper/Aluminum/ACSR;
- Length: 6 x 2 Meter;
- Step Down Sub-station 2300/1320V;
Brand: Green Power
Model: SDT-2300/1320
Country of origin: Bangladesh
- Transformer: – 1 Nos;
- Rating: 2300V/1320V, 10 KVA;
- Type: Dry Type Air Cooling;
- Transceiver Module (Wire/Wireless)
- Processor:ESP32-C3 (32-bit RISC-V single-core), up to 160 MHz.
- Memory:4MB Flash, 400KB SRAM, 384KB ROM.
- Connectivity:4GHz Wi-Fi (802.11b/g/n), Bluetooth 5.0(LE).
- Power:Ultra-low deep sleep (~43µA); supports USB-C.
- Peripherals:11 GPIOs, 4 ADC channels (12-bit), PWM, 1x I2C, 1x SPI, 2x UART (one USB-Serial).
- Security:Hardware acceleration for AES, SHA, RSA, Secure Boot
- Primary Distribution Line (Feeder) 1320V;
Brand: Green Power
Model: PRDL-1320
Country of origin: Bangladesh
- Span: 2 Meter; Tower: – 2 Nos;
- Materials: Stainless Steel (1- x 1- Angle Bar);
- Dimension: 1.5 Feet x 1.5Feet x 8 Feet;
- No of Cross Arm: 3;
- No of Circuit: 2 ( 1 Live and 1 Demo);
- Earth Wire On Top of the Tower with Lightning Arrester;
- Insulator: Disk Type Insulator (String);
- No of Disk: 18 each Tower;
- Materials: Wooden;
- Color: Coffee;
- Conductor: Size: 1×7 RM;
- Materials: Copper/Aluminum/ACSR;
- Length: 6 x 2 Meter;
- Transceiver Module (Wire/Wireless)
- Processor:ESP32-C3 (32-bit RISC-V single-core), up to 160 MHz.
- Memory:4MB Flash, 400KB SRAM, 384KB ROM.
- Connectivity:4GHz Wi-Fi (802.11b/g/n), Bluetooth 5.0(LE).
- Power:Ultra-low deep sleep (~43µA); supports USB-C.
- Peripherals:11 GPIOs, 4 ADC channels (12-bit), PWM, 1x I2C, 1x SPI, 2x UART (one USB-Serial).
- Security:Hardware acceleration for AES, SHA, RSA, Secure Boot
- Step Down Sub-station 1320/380V;
Brand: Green Power
Model: SDST-1320/380
Country of origin: Bangladesh
- Transformer: – 1 Nos;
- Rating: 1320V/380V, 10 KVA;
- Type: Dry Type Air Cooling;
- PFI: 9KVAR PFI – 1 Nos;
- 4 Stages PFI;
- Automatic & Manual Capacitor Connection System;
- LT Switchgear Panel with Load: 50Amp LT Panel Control with MCCB – 1 Nos;
- Digital Ammeter (AC): 5A – 1 Nos;
- CT Ratio: 100:5 – 1 Nos;
- Digital Voltmeter (AC): 500V – 1 Nos;
- Multifunctional Digital Watt Meter (W, VAR, VA, IL, IP, VL, VP, Cosθ): – 1 Nos;
- Transceiver Module (Wire/Wireless)
- Processor:ESP32-C3 (32-bit RISC-V single-core), up to 160 MHz.
- Memory:4MB Flash, 400KB SRAM, 384KB ROM.
- Connectivity:4GHz Wi-Fi (802.11b/g/n), Bluetooth 5.0(LE).
- Power:Ultra-low deep sleep (~43µA); supports USB-C.
- Peripherals:11 GPIOs, 4 ADC channels (12-bit), PWM, 1x I2C, 1x SPI, 2x UART (one USB-Serial).
- Security:Hardware acceleration for AES, SHA, RSA, Secure Boot
- Secondary Distribution Line 440V;
- Distributor Length: 3 Meter;
- Distributor Type: One Ended Distributor;
- Consumer Connection Point: 5;
- Phase: Single Phase & Three Phase;
- Pole: – 4 Nos;
- Materials: Stainless Steel;
- Dimension: 4- x 4- x 5 Feet;
- No of Circuit: 1;
- Earth Wire On Top of the Pole with Lightning Arrester;
- Insulator: Shackle Insulator;
- No of Insulator: 4 each Pole;
- Materials: Ceramic;
- Color: Coffee;
- Conductor: Size: 10RM;
- Materials: Copper;
- Length: 4 x 3 Meter;
- Transceiver Module (Wire/Wireless)
- Processor:ESP32-C3 (32-bit RISC-V single-core), up to 160 MHz.
- Memory:4MB Flash, 400KB SRAM, 384KB ROM.
- Connectivity:4GHz Wi-Fi (802.11b/g/n), Bluetooth 5.0(LE).
- Power:Ultra-low deep sleep (~43µA); supports USB-C.
- Peripherals:11 GPIOs, 4 ADC channels (12-bit), PWM, 1x I2C, 1x SPI, 2x UART (one USB-Serial).
- Security:Hardware acceleration for AES, SHA, RSA, Secure Boot
- Consumer Load (Inside LT Panel);
Brand: Green Power
Model: LTP-3PL
Country of origin: Bangladesh
- 100W, 220V Load – 3 Unit; Experimental Load-Filament Bulb.
- 260W, 220V Load – 3 Unit; Experimental Load-Filament Bulb.
- 1200W, 380V Load – 1 Unit; Experimental Load-
- 2100W, 380V Load – 1 Unit; Experimental Load- Halogen Flood Lamps
- 3000W, 380V Load – 1 Unit; Experimental Load- Halogen Flood Lamps
- Central Loop Controller;
Processor Core & Memory
- CPU: Dual-Core 32-bit Tensilica LX6 Microprocessor.
- Clock Speed: Up to 240 MHz (adjustable from 80 MHz).
- RAM: 520 KB SRAM (Internal).
- ROM: 448 KB (Internal).
- Flash: 4 MB (External, integrated into the module).
Connectivity
- Wi-Fi: 802.11 b/g/n (2.4 GHz).
- Bluetooth: v4.2 (Classic & BLE).
- Protocols: Supports TCP/IP, supports Access Point, Station, and mixed modes.
Peripherals & Features
- GPIO: Up to 36 programmable GPIOs.
- Analog: 18-channel 12-bit ADC, 2-channel 8-bit DAC.
- Interfaces: SPI, I2C, I2S, UART, CAN 2.0, PWM.
- Sensors: Capacitive Touch, Hall Sensor, Internal Temperature Sensor.
- Security: Secure Boot, Flash Encryption, AES hardware acceleration.
- OS: Runs freeRTOS with LwIP stack.
- Power: Ultra-low-power co-processor for deep sleep modes
- Accessories;
- Connecting Cord: 01 Set
- Power Cord: 01 No
- Connecting Wire & Cable
- Complete 5 days Training Included
- User Manual or User Guide
Warranty: 1 (One) year with services;
Reviews
There are no reviews yet.
