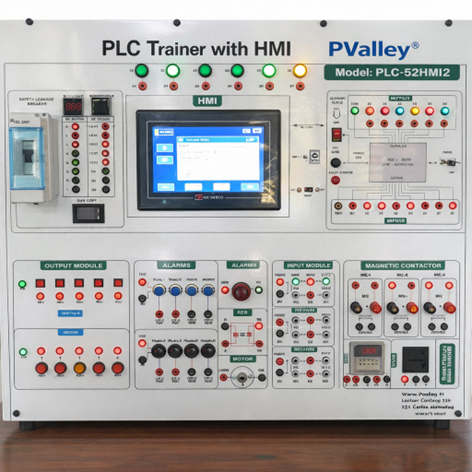

PLC Trainer

Brand: PValley

Model No: PLC-52HMI2

Country of Origin: Japan

Country of Manufacturing: Japan

Assemble: Bangladesh





General Specification:

Body Material:

• Best type Printed Sheet

Sheet Type: Digital
Country of origin: China
Feature:

• Sheet number 26
• Storage Printed temperature 300°c
• Color White/Silver
• Hard Round support board or Acrylic Sheet

Sheet Type: Acrylic
Country of origin: Pakistan
Feature:

• Sheet thickness 10mm
• Two-Part Combination(Transparent/white)
• UV Printout
• Safety Breaker.

Brand: Hyundai
Country of origin: South Korea
Feature:

• Human Body Sense safety
• Current error detection range is 20mA
• Soft tripping
• Low noise cut off
• Safety tripping
• Low insertion loss and high reliability
• Power supply

Brand: Biologic Tech
Country of origin: Taiwan

Features:

• Variac
• SMPS 24V/5A
• Panel Box

Brand: Madhav Enterprise
Country of origin: Indian

Features:

• Shape: Rectangular
• Surface Finish: Smooth
• High quality raw material
• Best structure.

Brand: Altech
Country of origin: Bangladesh
Feature:

• Sheet thickness 5mm
• Sheet (Silver/white)
• Square Shape
• Power Monitoring

Brand: UNI-T
Country of origin: China
Feature:

• Self-operating voltage 12V
• Self-Consumption Current 20mA
• Power Nature
• Two-row for Voltage & Current
• Use Connector

Brand: ZHT
Country of origin: China
Feature:

• Female Connector Diameter 13mm
• Male Connector Diameter 4.5mm

Working area:

• Working area: 40*25 in

Experiment Content

• PLC Basic Instruction Training
• Relay Control Experiment
• Magnetic Contactor Experiment
• Motor Forward and Reverse Controlling
• Automatic Motor Control System
• PLC & PC Online Communication
• Automatic Goods Delivery and Loading System
• Control Simulation
• Automatic Vending Machine Control System Simulation
• Switching of Lights Simulation
• 7 Segment Display Simulation
• Sequential Control of Motors Simulation
• Star Delta Control Simulation
• Tank Level Control Simulation
• Traffic Light Control Simulation
• Automatic Drink Dispensers Simulation
• Automatic Car Parking Garage Simulation
• Combination Lock Simulation
• Elevator Control System Simulator
• Automatic Vending Machine Simulation
• Washing Machine Simulation

Technical Specification:

• PLC Specification -Siemens S7-1200 (For Automation Trainer)
• Parameter Details
  • PLC Series Siemens S7-1200
  • Model (Default Recommended) CPU 1214C DC/DC/DC (Expandable)
  • Processor Type 32-bit high-performance processor
  • Programming Software TIA Portal (Totally Integrated Automation Portal)
  • Programming Languages Ladder (LAD), Function Block (FBD), Structured Text (ST), Statement List (SCL)
  • Cycle Time Approx. 0.1 µs/instruction
  • Memory (User Program/Data) 100 KB Program / 50 KB Data (for CPU 1214C)
  • Digital Inputs 14 Inputs (24V DC Sink/Source)
  • Digital Outputs 10 Outputs (24V DC, Transistor or Relay type)
  • Analog Inputs (Optional) Expandable via Signal Module (e.g., SM1231 AI)
  • Analog Outputs (Optional) Expandable via Signal Module (e.g., SM1232 AO)
  • High-Speed Counters 6 channels (60 kHz max)
  • Pulse Outputs (PWM/PTO) 2 channels (for Stepper Motor Control, up to 100 kHz)
  • Communication Ports 1x PROFINET (Ethernet) -For programming & HMI connection

• Expansion Options Supports up to 8 I/O modules and 3 communication modules
  • HMI Compatibility Siemens KTP Series HMI (via PROFINET)
  • Real-Time Clock Built-in
  • Mounting Type DIN Rail
  • 4mm banana sockets =22.
  • Consisting of 22 Nos. of Digital Inputs. (8 toggle switches + 8 push to ON switches + 2 Proximity sensor + 2 photo electric sensor)

• SEP FOR DIGITAL Output:
  • of 4mm banana sockets =45, for Magnetic contactor Contacts = 04 Nos. relay contacts =24 Nos.16Nos. of Output LED Indicators,5 Nos. of Relay Panel with coil rating 24V and contact rating of 220V, AC / 5 Amp, Magnetic Contactor coil rating AC 220V 40A.
  • SEP FOR MEASURING MEASUREMENT: 1x DC Voltmeter, 1x DC Ammeter.

Sep For Power Source:

• of 4mm banana sockets =10. +24V DC, consisting of 5 Nos. of +24V & 5 Nos. of GND,8 Pin Combined Socket for 220V AC.

Accessories:

• Experiment/User Manual: 01 Set
• Connecting Cord: 01 Set
• Power Cord: 01 No
• Connecting Wire & Cable
• Complete 5 days Training Included

Protection:

Over Voltage, Under voltage, Supply and DC Link overvoltage, Drive overload, Instantaneous Overcurrent, short circuit, Ground fault, etc.

Warranty: 1 (One) year with services
