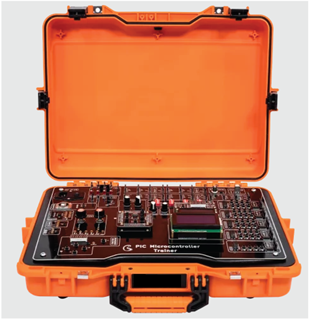

PIC Microcontroller Training System

Brand: PValley

Model: PIC18FM5

Country of Origin: China

Assemble/Manufacturer: Bangladesh





Technical Specification:

Body Material:

Thermal Printed Front Sheet

Sheet Type: Digital
Country of origin: China
Feature:

• Storage Printed temperature 300°c
• Different Color

Hard Round support board or Plastic Sheet

Sheet Type: Digital
Country of origin: Pakistan
Feature:

• Sheet thickness 10mm
• Two-Part Combination (Transparent/white)

Use Connector

Brand: ZHT
Country of origin: China
Feature:

• Banana Female Connector
• Banana Male Connector

Working area:

• Working area: 20*16 inch

Features:

• PIC Microcontroller kit should be a benchtop kit that tends to familiarize the trainee with the different microcontroller components and connections
• The kit should be designed in the form of a lightweight portable plastic case equipped with a real microcontroller and various electronic components related to its functions to allow a wide range of experiments
• It should be based on the Microchip PIC Microcontroller
• Should provide a large number of interface modules with configuration switches, which should open a wide range of experiments

General Specifications:

The trainer should consist of:

• Embedded PIC KIT programmer/debugger (access via USB port with indication LEDs)
• Microcontrollers supported as individual modules that plugged in to the Kit (default Plug-in module with kit «PIC18f45k22 SMD Module)
• The trainer also should include these families of microcontroller PIC10F, PIC12F, PIC16F, PIC18F (DIP Plugin Module), should include (PIC10F200), PIC12F (PIC12F1822), PIC16F (PIC16F877), PIC18F (PIC18F452)
• Microcontroller working voltage selectable (+3.3 or +5V)
• Integrated fixed DC power supply module: +3.3V, +5V, +12V, -5V, -12V (fuse protected) with LED indicators – accessed via 2mm sockets (for external modules)
• Integrated variable DC power supply Module: +1.25VDC to +5VDC or -1.25VDC to -5VDC (fuse protected) with led indicators – accessed via 2mm sockets (for external modules)
• Pullup and pulldown resistor for every microcontroller Pin (selectable between pull-up, floating, pull-down)
• Indication LED for every microcontroller pin
• Pushbutton for every microcontroller pin (selectable between VCC or GND signal)
• Pin header male/female groups for every microcontroller port for external connections
• Programming IDE:
  • Should support MPLAB®X integrated development environment and MikroC for PIC
  • Must include ready to run codes for all included trainer components by MicroC For PIC
  • Minimum 8 Digital switches (+3.3 or +5V)
  • Selectable Integrated pulse generator from 2 Hz : 1KHz (level selectable +3.3V or +5V)
  • Dip switches for configuring microcontroller I/O Ports
  • 1 x AC power source socket (fuse protected) with ON/OFF switch

Main Kit:

Microcontroller: PIC10F200, PIC12F1822, PIC16F877, PIC18F452 and PIC18F45K22 Module

Type A Communication Kit:

• 1 x (2 x 16 LCD module) contrast adjustable via potentiometer
• 1 x (64 X 128 GLCD module) contrast adjustable via potentiometer
• 1 x UART To USB interface type-A plug-in module
• 1 x I2C EEPROM type-A plug-in module
• 1 x RS232 interface type-A plug-in module

Type A Actuator Kit:

• 1 x Piezo buzzer type-A plug-in module
• 1 x speaker type-A plug-in module
• 1 X seven segment type-A plug-in module
• 1 x stepper motor interface Through ULN23803
• 1 x DC motor interface
• 1 x servo motor interface

Type A Sensors kit:

• 1 x temperature sensor LM35 type-A plug in module
• 1 x temperature sensor D518B20 type-A plug-in module
• 2 x potentiometers to simulate analog I/P to microcontroller (microcontroller connected pin selectable)
• 5 x Type-A Plug-in Modules Holder (For Type-A Plug-in Modules)

Type-B Plug-in Modules:

• 1 x Type-B Plug-in Modules Holder (For Type-B plug-in Modules)
• 1 x USB socket type B (for direct USB connection as a host)
• Should be supplied with Programming Software, Sample Codes, USB & RS-232 Cable

Warranty: 1 (One) year with services

Accessories:

• Experiment Manual: 01 Set
• Power Cord: 01 No
• Connecting Wire & Cable
• Complete 5 days of Training Included
• User Manual or User Guide

Protection:

Undervoltage, Supply overvoltage, Drive overload, Instantaneous overcurrent, short circuit, Ground fault, etc.
