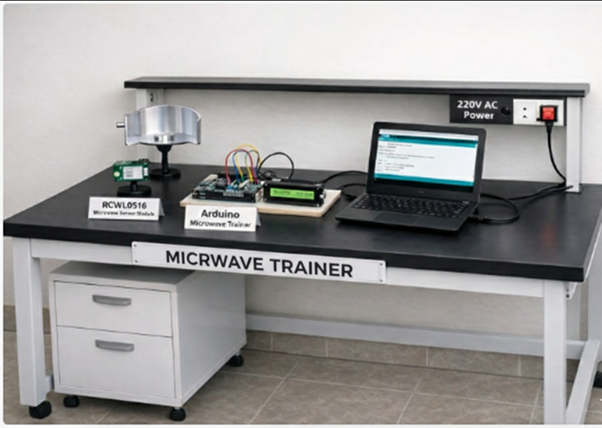

Microwave Trainer

Brand: PValley

Model: MWB-215S8

Country of origin: China

Country of Manufacturing/Assemble: Bangladesh

Technical Specification:

• Communication using the Microwave system
• Measurement in Microwave system
• FSK Modulation & Demodulation in Microwave band
• File transfer and data transmission
• Understanding of the micro strip design line theory
• Understanding the basic theory of microwave devices
• Design and simulation of Microwave devices
• Experiment in manufacturing and measurement of microwave devices
• Frequency Band: 2.4 GHz ~ 2.5 GHz
• Modulation: FSK
• Bit Rate: 4800~14400 bps
• Output Power: + 4.5 dBm Max.
• Impedance: 50 ohm
• Substrate Material: Rogers RO4003C
• PCB thickness: 0.508mm
• Dielectric constant: 3.38
• Low Noise Amplifier: (Gain: 26dB, Noise figure: 2.5dB, Input: P1dBm)
• Power Divider: (Type: 2-way Wilkinson, Return Loss: 14dB, Insertion Loss: 0.5dB)
• Band Pass Filter (2.4GHz): (Type: Edge-coupled, Return Loss: 10dB, Insertion Loss: 7.0dB)
• Band Pass Filter (2.5GHz): (Type: Edge-coupled, Return Loss: 10dB, Insertion Loss: 7.0dB)
• RF Amplifier: (Gain: 15dB, Input: -5dBm)
• Antenna (Transmitting & Receiving): (Type: Yagi, Gain: 9dB, VSWR: 1.5:1)

Accessories:

• Power Cord: 01 Set
• Connecting Wire & Cable
• Complete 5 days Training Included
• User Manual or User Guide

Protection:

Under voltage, Supply over voltage, Thermal, Short Circuit etc.

 Warranty: 03 Years with services
