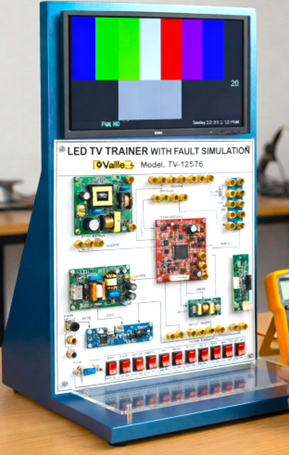

Led TV Trainer With Fault Simulation

Brand: PValley

Model: TV-125T6

Country of Origin: China

Country of Manufacturing: China

Assemble: Bangladesh





General Specification

Body Material:

Printed Front Side Sheet

Sheet Type: Digital
Country of origin: China
Feature:

• Sheet number 26
• Storage Printed temperature 300°c
• Color White/Silver

Hard Plastic Sheet

Sheet Type: Digital
Country of origin: Pakistan
Feature:

• Sheet thickness 10mm
• Two-Part Combination(Transparent/white)
• UV Printout

Power supply

Brand: Biologic Tech
Country of origin: Taiwan

Features:

• 24V/5A SMPS Power Supply

Panel Box

Brand: Madhav Enterprise
Country of origin: Indian

Features:

• Shape: Rectangular
• Surface Finish: Smooth
  • High quality raw material

Power Monitoring

Brand: UNI-T
Country of origin: China
Feature:

• Self-operating voltage 12V
• Self-Consumption Current 20mA
• Power Nature

Use Connector

Brand: ZHT
Country of origin: China
Feature:

• Banana Female Connector Diameter 2mm
• Banana Male Connector Diameter 2mm

Working area:

Working area: 40*24 inch

Technical Specification

• Superior quality 20-inch full HD LED Color Television/ PC Monitor
• Manual and Remote-control operation
• PAL/ NTSC video formats
• Composite video input/ VGA input
• Complete block diagram of a LED TV system on-board
• Easy identification of different parts and components of the system at a glance
• Easy measurement of voltages and observation of waveforms on test points
• Soldering free fault creation and troubleshooting

Accessories:

• Power Cord: 01 Set
• Connecting Wire & Cable
• Complete 5 days Training Included
• User Manual or User Guide

Protection:

Under voltage, Supply over voltage, Drive overload, Short Circuit etc.

Warranty:01 (One) year with service
