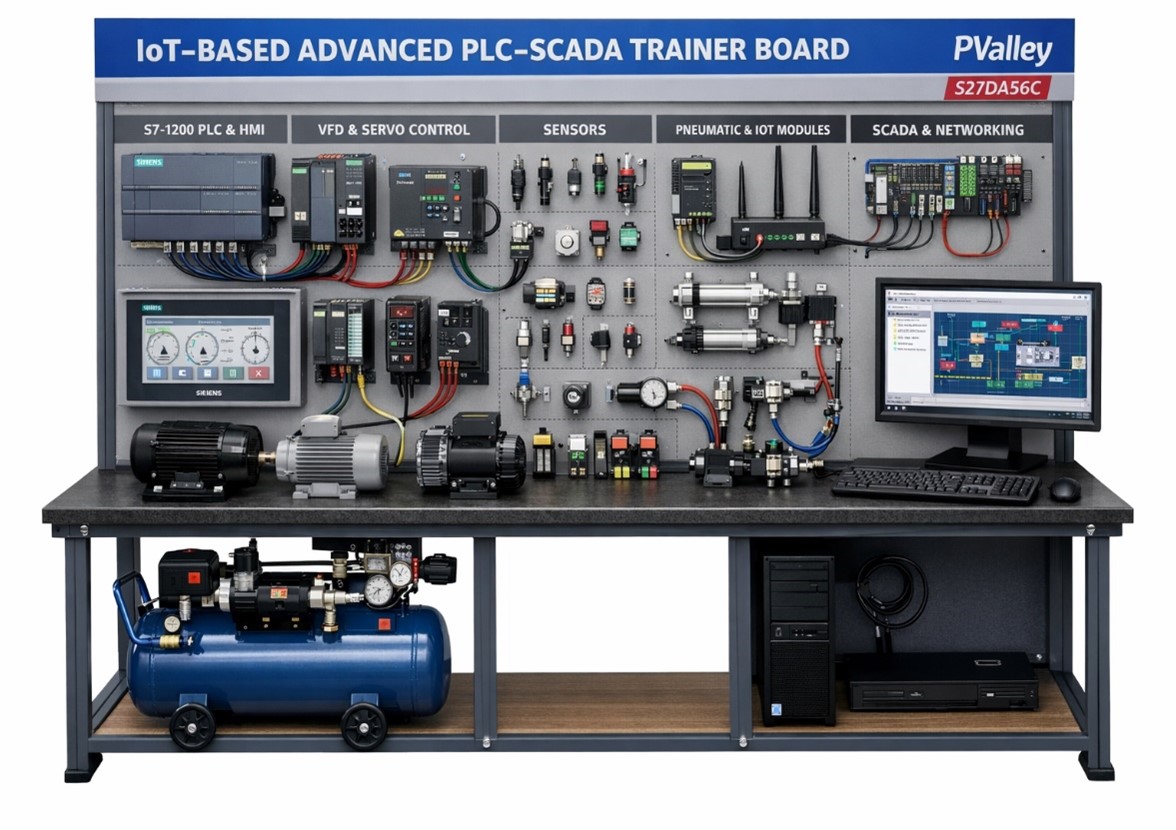

IoT-Based Advanced PLC–SCADA Trainer Board

Brand: PValley

Model: S27DA56C

Country of origin: China

Country of Assemble/ Manufacturer: Bangladesh





Specifications:

1. Programmable Logic Controller (PLC): Siemens S7‑1200 CPU 1214C, integrated digital I/O, expandable with:

• Analog input/output modules
• Temperature measurement module (RTD, Thermocouple)
• PROFINET and Modbus communication capability

2. Supervisory Control & Data Acquisition (SCADA):

• Siemens TIA Portal V19 software, WinCC Advanced/Professional
• Licensed for educational/industrial training use
• Runtime environment for local and remote monitoring/control

3. Human–Machine Interface (HMI):

• Siemens KTP400 Basic, 4‑inch TFT touchscreen, PROFINET interface

4. IoT & Networking:

• Industrial‑grade 4G/5G LTE VPN cellular router
• Secure cloud access for remote monitoring/control
• LAN and WAN connectivity options

5. Motor Control Systems:

• Siemens SINAMICS V20 Variable Frequency Drive (1.5 kW)
• Delta AC Servo Drive and Motor (400 W)
• Induction Motor, 3‑phase, 75 kW

6. Sensors:

• Inductive proximity sensors
• Capacitive proximity sensors
• Photoelectric sensors
• Pressure transmitter
• Rotary encoder
• Magnetic contacts
• Limit switches

7. Actuators:

• Double‑acting pneumatic cylinders with solenoid valves
• Pneumatic actuators and fittings

8. Pneumatic Supply:

• Portable air compressor, 10 bar working pressure, 20–30 L capacity
• Regulator, lubricator, and associated accessories

9. Training Modules & Exercises:

• Basic and advanced logic operations
• Motor control via VFD and servo
• Industrial communications (PROFINET, Modbus)
• HMI design and programming
• SCADA project development and deployment
• IoT‑enabled monitoring and control
• PID control simulation
• 50+ preconfigured industrial project simulations

10. PC & Display Unit:

• Intel 12th Gen Core i5 desktop, 16 GB RAM
• Storage: 256 GB SSD + 1 TB HDD
• 19‑inch LED monitor
• Pre‑installed with required software

11. Panel & Furniture:

• Custom steel training table with integrated PLC panel
• Mounting space for motors, HMI, drives, and accessories
• Dedicated monitor and CPU stand

12. Electrical Accessories:

• Control and power cables
• Relays, miniature circuit breakers (MCBs)
• Safety sockets
• Cable lugs and ties

13. Documentation & Training Support:

• Printed and digital manuals
• Step‑by‑step experiment guides
• Installation and commissioning assistance
• On‑site or virtual training sessions

Standard Accessories:

• Connecting connector

• Power Cord: 01 Set
• Connecting Wire & Cable
• Complete 5 days Training Included
• User Manual or User Guide

Protection:

Under voltage, Supply over voltage, Drive overload, Short Circuit etc.

Warranty:01 (One) year with service
