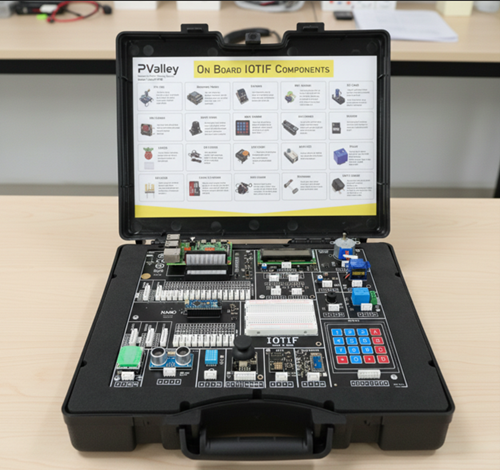

Internet of Things (IoT) Training Solution

Brand: PValley

Model: IoT-674T8

Country of Origin: Japan
Country of Manufacture: Japan

Assemble: Bangladesh



General Specification:

Body Material:

Printed Front Side Sheet

Sheet Type: Digital
Country of origin: China
Feature:

• Sheet number 26
• Storage Printed temperature 300°c
• Color White/Silver

Hard Plastic Sheet

Sheet Type: Digital
Country of origin: Pakistan
Feature:

• Sheet thickness 10mm
• Two-Part Combination (Transparent/white)
• UV Printout

Power supply

Brand: Biologic Tech
Country of origin: Taiwan

Features:

• 24V/5A SMPS Power Supply

Panel Box

Brand: Madhav Enterprise
Country of origin: Indian

Features:

• Shape: Rectangular
• Surface Finish: Smooth

High quality raw material

Power Monitoring

Brand: UNI-T
Country of origin: China
Feature:

• Self-operating voltage 12V
• Self-Consumption Current 20mA
• Power Nature

Use Connector

Brand: ZHT
Country of origin: China
Feature:

• Banana Female Connector Diameter 2mm
• Banana Male Connector Diameter 2mm

Working area:

Working area: 24*30 inch

Technical Specification:

This training solution must have the following features and experiments activities:

This training solution must have the following features:

• This Internet of Things kit should be designed to allow students to study the Internet of Things and Industry 4.0 for automation and control.
• The kit should be based on a Raspberry Pi MIAC controller running Raspbian and Node-RED software.
• The MIAC controller should have an LCD display, keypad, 8 analogue inputs, 4 transistor (FET) outputs and 4 relay outputs.
• It shall be housed in a plastic case with 4mm connectors that allows students to easily build a number of circuits with sensors (switches, potentiometer, light, temperature) and actuators (motor, solenoid, bulb).
• A Lock Tronics panel and several components must be included so that circuits can be quickly put together.
• The unit must be supplied with MIAC specific Node-RED nodes that can be easily used to control the input and output signals.
• This associated briefing document must show students how to get the hardware and software up and running and gives suggested applications that the students must put together to learn how systems will be controlled using IP technology in the future.

Processor (CPU)

Model: Broadcom BCM2711

Type: Quad-core Cortex-A72 (ARM v8) 64-bit SoC

Clock Speed: 1.5 GHz (can be overclocked to ~2.0 GHz with cooling)

GPU: Video Core VI (supports OpenGL ES 3.0, H.265 4K video decode)

RAM

Raspberry Pi 4 comes in 8 GB LPDDR4 RAM variants:

Type: LPDDR4-3200 SDRAM (onboard, soldered, not upgradable)

Storage (ROM)

No onboard ROM for user storage (no internal eMMC like some SBCs)

Storage is via microSD card (UHS-I recommended)

Minimum: 8 GB, recommended: 16–64 GB+

Supports booting from USB 3.0 SSD (with firmware update)

Motherboard (PCB) Details

• Form factor: 88mm × 58mm, standard Raspberry Pi single-board layout
• RAM: Soldered LPDDR4 chips
• CPU/GPU: Integrated in BCM2711 SoC
• USB ports:
  • 2 × USB 3.0
  • 2 × USB 2.0
• Video Output: 2 × micro-HDMI (up to 4Kp60)
• Ethernet: Gigabit Ethernet
• Wi-Fi/Bluetooth: 802.11ac Wi-Fi, Bluetooth 5.0
• Power: USB-C 5V/3A input
• GPIO: 40-pin header (fully backward compatible with Pi 2/3)

Experiments List:

• With this trainer it should be possible to perform the following experiences:
• Sense and actuator circuits based on industrial controllers
• Node-RED software and flows
• Construction of browser-based GUIs using Node-RED
• Communications protocols including MQTT
• Development of Raspberry Pi based IoT applications
• Development of cloud-based IoT applications
• Exchanging data between IoT devices and cloud-based applications
• Utilizing Node-RED as an IoT platform for learning and development
• Security implications for IoT

Remote data logging, sensing and control

This training solution must be included with the following bill of materials:

• 7 x 5 metric baseboard with 4mm pillars
• Motor 3 to 12V DC, 0.7A
• Solenoid
• Thermistor, 4.7k, NTC (DIN)
• Phototransistor Carrier
• Switch, on/off, toggle
• General purpose lead set (LK5603 x 2, LK5604 x 2)
• Lead, yellow, 500mm, 4mm to 4mm stackable
• Lead, blue, 500mm, 4mm to 4mm stackable
• Lamp holder, MES, for automotive LEDs
• MES bulb, 12V, LED, red
• RS232 lead for the MI0899 solution
• Cased MIAC with Raspberry Pi MIAC
• Internet of things solution CD ROM
• Power supply
• Plastic shallow tray BLACK
• Deep tray
• Tray Lid

This trainer must be included with following these items:

• Raspberry Pi MIAC controller
• Lock Tronics Panel
• Lock Tronics Components
• Curriculum Resource

Accessories:

• Power Cord: 01 Set
• Connecting Wire & Cable
• Complete 5 days Training Included
• User Manual or User Guide

Protection:

Under voltage, Supply over voltage, Drive overload, Short Circuit etc.

Warranty: 1 (One) year with services
