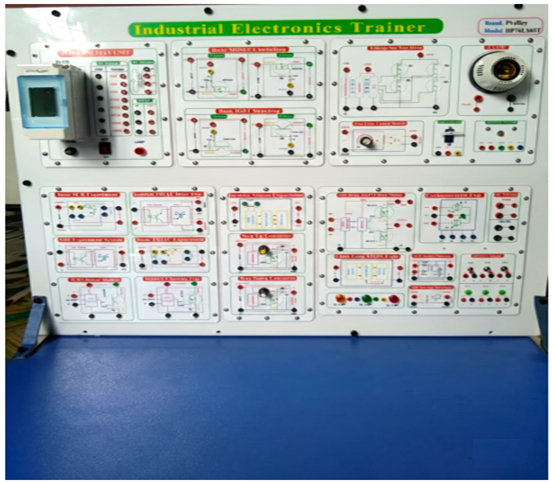

Industrial Electronics Trainer

Brand: PValley

Model: HP76LS85T

Country of Origin: Taiwan

Manufacturer: Bangladesh





Features:
Various types of industrial electronic devices, such as , UJT, PUT, SCR, SCS, DIAC, TRIAC, MOSFET, IGBT are introduced in this system. For each device, students are able to learn its characteristic, trigger circuit, and practical application circuit those provide students an comprehensive understanding of related knowledge in this technology field.

Experiment Modules:

Generally, use 2mm plugs and sockets connected by 2mm or 4mm test leads Circuits, blocks and components symbols printed on the surface of each module.

Module secured in plastic housing, modules to standard DIN A4 equivalent height.

Cabinet provides easy to store facilities for all modules comprehensive experiment Manuals

General Specification:

Body Material:

Printed Front Side Sheet

Sheet Type: Digital
Country of origin: China
Feature:

• Sheet number 26
• Storage Printed temperature 300°c
• Color White/Silver

Hard Round support board or Plastic Sheet

Sheet Type: Digital
Country of origin: Pakistan
Feature:

• Sheet thickness 10mm
• Two-Part Combination(Transparent/white)
• UV Printout

Safety Breaker
Brand: Hyundai
Country of origin: South Korea
Feature:

• Human Body Sense safety
• Current error detection range is 20mA
• Soft tripping
• Low noise cut off

Panel Box

Brand: Madhav Enterprise
Country of origin: Indian

Features:

• Shape: Rectangular
• Surface Finish: Smooth
• High-quality raw material

Best structure

Brand: Altech
Country of origin: Bangladesh
Feature:

• Sheet thickness 5mm
• Sheet (Silver/white)
• Square Shape

Power Monitoring

Brand: UNI-T
Country of origin: China
Feature:

• Self-operating voltage 12V
• Self-Consumption Current 20mA
• Power Nature

Use Connector

Brand: ZHT
Country of origin: China
Feature:

• Banana Female Connector Diameter 2mm
• Banana Male Connector Diameter 2mm

Working area:

• Working area: 40 * 25 inch

Technical Specification:

• Power Supply Unit
  (1) ACV Output voltage :18V-0V-18V,0.5A
  (2) ACV Output voltage :12V-0V-12V,0.5A
  (3) DCV Output voltage: +12V,0.5A
  (4) DCV Output voltage: +5V,0.5A
• Meter/Motor Unit
  (1) Dual –scale ACV: 0-110V-220V. class 2.5
  (2) Dual –scale ACA: 0-100mA-1A, class 2.5
  (3) Dual –scale DCV: 0-10V-20V class 2.5
  (4) Dual –scale DCA: 0-100mA-1A, class 2.5
  (5) AC110V/220 motor

• Isolation Transformer: AC 110V/220V

List of Modules:

• Power Supply Unit Experiments
  (1) AC voltage measurement
  (2) DC voltage measurement

• UJT Experiments
  (1) UJT introduction
  (2) UJT Characteristic
  (3) UJT equivalent circuit
  (4) CDS trigger, RTH trigger

• UJT Oscillator Circuit & Timer Switch
  (1) UJT relaxation oscillator
  (2) JUT timer switch
• PUT Experiments

• PUT Characteristic & Equivalent Circuit
  (1) PUT introduction
  (2) PUT Characteristic
  (3) PUT equivalent Circuit
  (4) CDS trigger
  (5) RTH trigger
• PUT Oscillator Circuit & Timer Switch
  (1) PUT Circuit oscillator
  (2) PUT timer switch
• PUT & SCR Experiments
  • PUT Staircase Generator & Voltage Control Ramp Circuit
    (1) PUT staircase generator circuit
    (2) PUT voltage control ramp circuit
  • SCR Characteristic & RC Shift Control Circuit
    (1) SCR Principle
    (2) SCR characteristic curve
    (3) SCR Construction
    (4) SCR trigger mode
    (5) SCR RC phase control circuit
• SCS Experiments
  • SCS Characteristic Experiment
    (1) SCS construction and operation mode
    (2) Use VOM meter measuring SCS
    (3) SCS Schmitt circuit
    (4) SCS simulate PUT Circuit
  • SCS Trigger Circuit Experiment
    (1) CDS trigger
    (2) RTH trigger
• UJT & PUT Trigger SCR Experiment
  • UJT Trigger SCR Phase Control Circuit
    (1) Phase control basic circuit
    (2) Phase control analysis
    (3) AC phase control circuit analysis
    (4) UJT trigger SCR Phase control circuit
  • PUT Trigger SCR Phase Control Circuit
• SCR Control DC Motor & DIAC, TRIAC
  • SCR Characteristic Experiments
  • SCR Control DC Motor Forward/Reverse Experiment
    (1) SCR Cut-off principle
    (2) SCR control DC motor Forward / reverse control experiment
  • DIAC, TRIAC Characteristic Experiment
    (1) DIAC construction and characteristic
    (2) DIAC operation mode and measurement
    (3) TRIAC construction and characteristic
    (4) TRIAC trigger mode
    (5) TRIAC static measurement
• Automatic Control Lamp, TRIAC Control Speed experiment
  • Automatic Control Lamp Experiment
    (1) TRIAC shift control
    (2) TRIAC automatic control lamp experiment
  • TRIAC Control Motor Speed Experiment
    (1) Different motor introduction
    (2) TRIAC control motor speed experiment
• Temperature Ratio, Photo-Couple and Touch Control Experiments
  • Bridge Temperature Ratio Control Experiment
    (1) Electronic component of thermal resistor
    (2) SCR bridge temperature ratio control experiment
  • Photo-Couple and Touch Control Experiment
    (1) Photo – couple control circuit
    (2) FET construction and characteristic
    (3) Touch alarm circuit
• Over / Under Voltage Breaker and Flasher Control Experiments
  • Over /Under Voltage Breaker Experiment
    (1) OPA characteristic with reverse & non-reverse circuit
    (2) Voltage comparison circuit
  • Flasher Control Experiment
    (1) Application of TRIAC power control
    (2) AC circuit control
    (3) Multi vibrator
• TRIAC Liquid Level& IC Timer Switch Experiments
  • TRIAC Liquid Level Control Experiment
    (1) Digital circuit introduction
    (2) TRIAC liquid level control experiment
  • IC Timer Switch Experiment
    (1) NE 555 IC circuit introduction
    (2) IC timer switch experiment
• Digital Signal Drive & Zero-Voltage Switch Experiments
  • Digital Signal Driver Control Experiment
  • Digital Signal driver control experiment
  • Zero-Voltage Switch Experiments (I)
  • Ideal half – wave zero-voltage switch experiments
• Zero-Voltage Switch Experiments
  • Zero-Voltage Switch Experiments(II)
    (1) TRIAC zero-voltage switch experiments
    (2) IC mode zero-voltage switch experiments
• SCR Converter Experiments
  (1) Parallel converter introduction
  (2) Series converter introduction
  (3) Converter voltage adjustment
  (4) Converter output- wave form improvement
• SCR Rectifier Circuit Experiments
  (1) Single – phase half –wave rectifier
  (2) Single – phase full –wave rectifier
  (3) Single- phase bridge rectifier
  (4) Three-phase half –wave rectifier
  (5) Three – phase full-wave rectifier
• JFET / MOSFET Characteristic & MOSFET Speed Control Experiments
  (1) JFET characteristic experiment
  (2) MOSFET characteristic experiment
  (3) OSFET speed control experiment
• IGBT Characteristic & IGBT Speed Control Experiments
  (1) IGBT characteristic experiment
  (2) IGBT speed control experiment

Protection System

• Over-Voltage
• Under-Voltage
• Over-Current/Short-Circuit
• Earth Leakage (ELCB)
• Emergency Stop (E-Stop)

Standard Accessories

• Power Cord
• External Switch Module
• Male to Male Banana Connector
• Experiment Manual and Instructor’s Manual
• Connection Leads and Plugs
• 5 Days In-House Training

Warranty Period: One (1) Year
