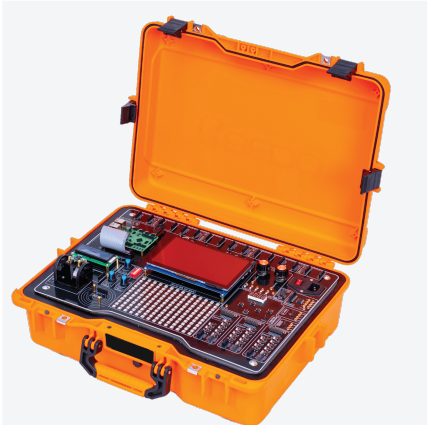

FPGA Training System including Licensed Interactive System

Brand: UGREEN

Model: CM449

Country of Origin: China

Assemble/Manufacturer: Bangladesh





Technical Specification:

Body Material:

Thermal Printed Front Sheet

Sheet Type: Digital
Country of origin: China
Feature:

• Storage Printed temperature 300°c
• Different Color

Hard Round support board or Plastic Sheet

Sheet Type: Digital
Country of origin: Pakistan
Feature:

• Sheet thickness 10mm
• Two-Part Combination (Transparent/white)

Use Connector

Brand: ZHT
Country of origin: China
Feature:

• Banana Female Connector
• Banana Male Connector

Working area:

• Working area: 16*12 inch

Features:

• The FPGA Training System, should be a ready-to-use development platform designed around the Artix-7
• Field Programmable Gate Array (FPGA) from Xilinx
• FPGA Training System should be so flexible because of its FPGA
• Among their many features, FPGAs should have the ability to transform into a custom software-defined system-on-a Chip (SoC)
• These Soft SoC FPGA configurations should be designed graphically using a tool called Vivado IP Integrator
• Vivado IPI should be pre-built peripheral blocks that are dragged from an extensive library and dropped into user’s processing system
• These pre-built peripherals should include timers, UART/SPI/IIC controllers, and many of the other devices user would typically find in an SoC or microcontroller
• Users should also find that they can create their own peripheral blocks by writing them in a Hardware Definition Language (HDL), specifically Verilog or VHDL
  The Xilinx High-Level Synthesis tool to be used to define custom peripheral blocks by writing them in C
• The Soft SoC configurations should be powered by MicroBlaze processor cores

General Specification:

The trainer should consist of below components:

• 1 x 7-inch LCD capacitive touch screen HDMI 800*480
• 1 x Mini-vibration motor
• 1 x ?14×12 RGB LED matrix
• Sensor GY-87:
• 1x (3-axis Gyroscope + 3-axis acceleration + 3-axis magnetic field + air pressure) Type-A Plug-in Module
• 1 x Temperature and Humidity Sensor DHT11 Type-A Plug-in Module
• 1 X Humidity, barometric pressure and ambient temperature BME280 Type-A Plug in Module
• 1 x Light Sensor (CDS Photoresistor) Type-A Plug-in Module
• 1 x PIR motion sensor Type-A Plug-in Module
• 1 x Ultrasonic sensor Type-A Plug-in Module
  1 x DC motor interface
• 1 x Servo motor interface
• 1 x Stepper motor through ULN2803
• 1 x Remote + IR receiver Type-A Plug-in Module
• 1 x RFID module
• 1 x Relay type-A Plug-in Module
• Integrated fixed DC power supply module: +3.3V, +5V, +12V, -5V, -12V (fuse protected) with led indicators – accessed via 2mm sockets (for external modules)
• Integrated variable DC power supply module: +1.25VDC to +5VDC or -1.25VDC to -5VDC (fuse protected) with LED indicators – accessed via 2mm sockets (for external modules)
• Integrated pulse generator from 2 Hz : 1KHz
• 1 X Seven Segment Type-A Plug-in Module
• 1 x (2 x 16 LCD module) contrast adjustable via potentiometer
• 1 x Piezo buzzer Type-A Plug-in Module
• 1 x Speaker Type-A Plug-in Module
• 2 x Potentiometers to simulate analog I/P
• 5 x Type-A Plug-in Modules Holder (For Type-A Plug-in Modules)
• 1 x AC power source socket (fuse protected) with ON/OFF switch
• Pullup and pulldown resistor for every GPIO Pin, Selectable between (Pull-up, floating, pull-down)
• Indication LED for every GPIO Pin
• Pin header male/female group for GPIO for external connections
• Must include ready to run codes for all included trainer components

Xilinx Artix-7 FPGA:

• 5,200 slices containing four 6-input LUTs and 8 flip-flops (15,850 slices)
• 1,800 Kbits of fast block RAM (4,860 Kbits)
• 5 clock management tiles (CMTs), each with a phase-locked loop and mixed mode clock manager (6 CMTs)
• 90 DSP slices (240 DSP slices)
• Internal clock speeds exceeding 450MHz
• On-chip analog-to-digital converter (XADC)
• Programmable over JTAG and Quad-SPI Flash

System Features

• 256MB DDR3L with a 16-bit bus @ 667MHz
• 16MB Quad-SPI Flash
• USB-JTAG Programming circuitry
• Powered from USB or any 7V-15V source
• System Connectivity: 10/100 Mbps Ethernet and USB-UART Bridge
• Interaction and Sensory Devices: 4 Switches, 4 Button, 1 Reset Button, 4 LEDs and 4 RGB LEDs
• Expansion Connectors: 4 Pmod connectors and Arduino/ChipKit Shield connector

Licensed Interactive Software Features:

• An interactive and self-paced learning method that can be used in labs, workshops, or classes in educational facilities or remotely from home
• Should help in improving the academic performance of the students
• Students should have a more fun experience in labs and classes
• The productivity of both the students and instructors can be increased greatly using this tool
• It can be used as an additional tool to deliver information besides traditional textbooks and other soft materials
• The trainees can have access to different types of interactive materials
• Interactive materials must aid them with having a better understanding of complex scientific topics and additional homework
• They should be able to revisit all the course material, question banks, and interactive content at their fingertips
• The student should be able to access the material at a any time of the day, using any device that can be connected to the internet
• The question banks should have a variety of question types such as true and false, MCQ single choice, MCQ Multiple answers, and short answer questions
• The ability to add drag-and-drop questions for a more interactive way of testing
• The different modules components can be presented easily
• The different trainers can be explained and illustrated in a very detailed and organized way
• Technical data of all the components of all the trainers should be provided in the content
• Instructions for operation, pre-setup, and setup must be shown using this tool in an organized and detailed way
• A tutorial for how to use the trainers? software and its interface (if the trainer has software) should be provided and explained through GIFs and pictures
• Safety tips to ensure the safety of the user and the devices are added
• Quizzes, and practice questions can be included and both the instructor & the trainees can make great use of them
• The ability to add interactive tests
• Easy navigation through the digital course content with the help of a digital table of contents
• Easy access to each chapter with a very organized way to show sections and sub sections
• A pleasant user interface to ensure the comfort of the user
• Should be supplied in a USB Pen Drive with License

Warranty: 1 (One) year with services

Accessories:

• Experiment Manual: 01 Set
• Power Cord: 01 No
• Connecting Wire & Cable
• Complete 5 days of Training Included
• User Manual or User Guide

Protection:

Undervoltage, Supply overvoltage, Drive overload, Instantaneous overcurrent, short circuit, Ground fault, etc.
