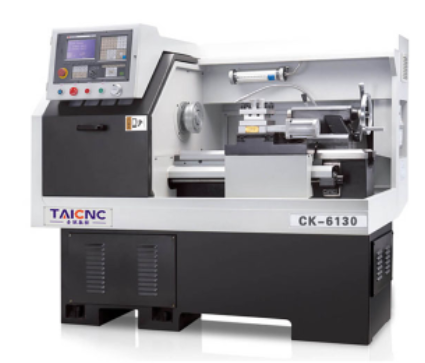

Flat Bed CNC Lathe Machine

Brand: TAICNC

Model: CK-6130

Country of origin: China

Country of manufacturer: China

Technical Features:

• Travel
• Max Rotary Diameter on Bed: 300 mm,
• Max stroke on swing: 150 mm,
• Max Length for workpiece: 350 mm,
• Width of Guiderail: 260 mm,
• Spindle Speed: 300-3000 AC (r/min),
• Spindle Taper: Φ48 mm,
• Main Motor Power: 3.0kW AC kw,
• Z Travel: 400 mm,
• X Travel: 200 mm,
• Driving Motor Torque X/Z: Servo 4/6 nm,
• Repeat Position Precision X/Z: 0.008/0.001 (ISO),
• 4 work position Carriage: Standard
• Tool Rack: On requirement,
• Tool Size: 20×20 (mm),
• Tool Change time: 1.7 S,
• Tailstock Sleeve travel: 100
• Tailstock Sleeve Diameter/Taper: Φ50/MT4
• Outer Size: 1625-1635×930-940×1400-1420 mm
• Total Weight: 1200(For Ref)
