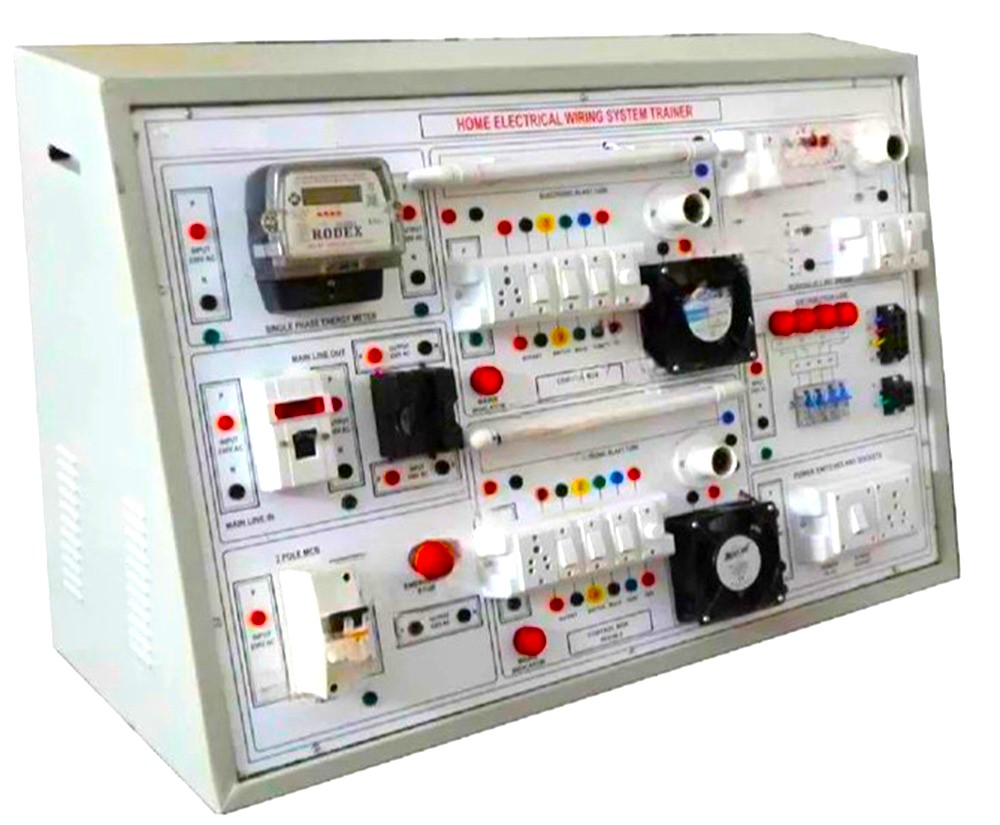

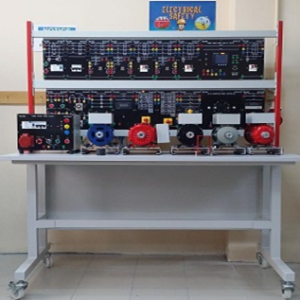

Electrical Wiring Trainer Board

Brand: PValley

Model: HW-762P4

Country of Origin: China

Assemble/Manufacturer: Bangladesh





General Specification:

Body Material:

Printed Front Side Sheet

Sheet Type: Digital
Country of origin: China
Feature:

• Sheet number 26
• Storage Printed temperature 300°c
• Color White/Silver

Hard Round support board or Plastic Sheet

Sheet Type: Digital
Country of origin: Pakistan
Feature:

• Sheet thickness 10mm
• Two-Part Combination (Transparent/white)
• UV Printout

Safety Breaker
Brand: Hyundai
Country of origin: South Korea
Feature:

• Human Body Sense safety
• Current error detection range is 20mA
• Soft tripping
• Low noise cut off

Panel Box

Brand: Madhav Enterprise
Country of origin: Indian

Features:

• Shape: Rectangular
• Surface Finish: Smooth
• High-quality raw material

Best structure

Brand: Altech
Country of origin: Bangladesh
Feature:

• Sheet thickness 5mm
• Sheet (Silver/white)
• Square Shape

Power Monitoring

Brand: UNI-T
Country of origin: China
Feature:

• Self-operating voltage 12V
• Self-Consumption Current 20mA
• Power Nature

Use Connector

Brand: ZHT
Country of origin: China
Feature:

• Banana Female Connector Diameter 13mm
• Banana Male Connector Diameter 4.5mm

Working area:

• Working area: 32 * 24 inch

Technical Specification:

• Provide available electrical components and interconnect in different configurations.
• Acquire the basic knowledge on electrical engineering, installations and electrical measurements.
• Study the means to check the main laws and principles.
• Component symbols and electrical diagrams are represented on the front panel.
• The symbols and electrical diagrams of each component are clearly represented on the front panel.
• The connections are eased by 4mm terminals and cables of different colors. The power supplies are included with extra low safety voltage.
• General switch, fuse and signaling lamp:
  • 1 Safety single‐phase transformer 115‐230V/6‐12‐24 VAC‐1A;
  • 2 Fuse‐holder with fuse type 6×30‐1A;
  • 1 Moving iron ammeter with range 0.5‐1A;
  • 1 Moving iron voltmeter with range: 25 V;
  • 10 Resistors of different values (2.4.8.16.31.5.63.250, 500, 1000. 2000);
  • 1 linear rheostat 100 /25W;4 Diodes A‐100V;
  • 2 Lamp‐holder with 24‐V signaling lamp;
  • 1 24‐Vac buzzer;
  • 1 Electrolytic capacitor, 100 µF 25V dc;
  • 2 Electrolytic capacitors, 500 µF 25V dc;
  • 2 inductances of 60 mh 0.5 A;
  • Electrical Sequence Trainer: Hands‐on electrical sequence practices using various electrical components with electric contact. Simulates real life components and power source that is being used in the field Ensures safety using insulated connection cables and insulated connection terminals;

Experimental Contents:

• Basic circuit; Logic circuit;
• Self-holding circuit;
• Timer circuit; Priority circuit;
• Detection circuit; Lamp and alarm circuit;
• Motor operational circuit;
• Reactor‐driving circuit; Jog circuit;
• Forward & reverse circuit;
• Delay operation circuit;
• Time activation circuit;
• Y‐∆ operational circuit;

Include part-

• Earth leakage circuit breaker (ELCB): 1 ea;
• Rated voltage: AC 220V 60HZ;
• Rated current: 304;
• Rated residual current: 30mA;
• Electronic contactor (5a2b): 3 ea;
• Contact capacity: AC 240V/ I5A/4.5k W;
• Auxiliary contact capacity: AC 240V 3A;
• Electronic overload relay (EOCR, 1/2HP): 1 ea;
• Internal CT (sensor): 3‐CT (tunnel type);
• Current setting: 0.3‐1.5A;
• Trip time setting: 0‐30 sec. Contact capacity: AC 230V 3A (Resistive load);
• Relay (4C): 2ea;
• Contact capacity: AC 220V 3A (Resistive load);
• Timer (30 seconds): 1 ea;
• Operational method: ON delay;
• Output contact capacity: AC 220V 1.5A (Resistive load);
• Flicker timer (6 seconds): 1 ea;
• Operational method: ON Start;
• Output contact capacity: AC 220V 2.5A (Resistive load);
• 3‐ phase induction motor: 1 ea;
• Operating voltage: 3‐phase AC 220V/380V/25W;
• Type of motor: Squirrel cage rotor, 4‐pole and Y‐A Starting;
• Rotary disc: Rotational speed detection type;
• Electronic brake: Intensity control function;
• Proximity sensor: 1 ea;
• Digital counter: 1 ea;
• DC power supply: 1 ea
• Output: DC 24V 1A (fuse);
• Lamp: 4 ea; Buzzer: 1 ea;
• Push button: 4 ea; Toggle switch (alb): 2ea;
• Fuse and fuse holder. 2 ea;
• Supports angle adjustment: 1 ea;

STANDARD ACCESSORIES:

• Power cord: 1 ea;
• 40 insulated connection cables: 1 set;
• User’s guide & experimental manual: 1ea;
• Digital Multifunctional Meter;
• Showing electrical wiring tips on the LCD screen;
• User‐defined backlight setting (10/20/30 sec.);
• ±0.2% precision;
• Fast and accurate response rate;
• Effective measurement of RMS values;
• Indication of a measured data in the minimum, maximum and average values;
• Earth resistance measurement in two points and three points;
• Automatic power-off function; Bluetooth communication;
• Displays the connection of reed wires;
• AUTO/MANUAL range selection;
• Initiation of calibration by pressing a key button;
• ACV: 0.0‐7500 V True RMS;
• DCV: 0.0‐999,9V;
• Insulation resistance (MΩ ): DC 1000V: 0.00MΩ‐9.99MΩ. 10.00MΩ‐99.99MΩ 100.0MΩ‐1999MΩ; DC 500V: 0.00MΩ‐9.99MΩ, 10.00MΩ‐99.99MΩ, 100.0MΩ‐999.9MΩ; DC 250V: 0.00MΩ‐9.99MΩ, 10.00MΩ‐99.99MΩ, 100.0MΩ‐999.9MΩ;
• Ground resistance (EAR Ω): 0‐2000Ω;
• Ground voltage (EV): 0.0‐750.0V AC, True RMS;
• PHA: ACTION‐750V LCD Display;
• HOT: AC70V‐750V Buzzer, LCD Display;
• ACA: 0‐9999A, True RMS;
• For: 0.00 ‐9,99mA. True RMS;
• Communication: Bluetooth 4.0

Standard Accessories:

• User’s guide manual;
• 5V Alkaline AA battery 5 ea;
• Protective rubber cover (orange color);
• Carrying bag: 1 ea;
• Test lead wire (red color, mega and 1.2m roll length) – 1 ea.;
• Test lead wire (black color, mega 2 and 1.2m roll length)  -1 ea;
• Test probe (red color, 600V and CAT III)—1 ea;
• Test probe (black color, 600V and CAT III)‐1 ea;
• Crocodile clip (black color, EN6 1010 and CAT III)‐1 ea.
• Test lead wire green color, KSC3325 and 1.2m roll length)  1 ea;
• Test lead wire (red color, 600V and 20m roll length)  1 ea;
• Test lead wire (yellow color, 600V, and 100 m roll length)  1 ea;
• Test lead wire (green);

Protection:

Undervoltage, Supply overvoltage, Drive overload, Ground fault, etc.

Accessories:

• Power Cord: 01 set
• Connecting Wire & Cable
• Complete 5 days of training included.
• User Manual or User Guide
