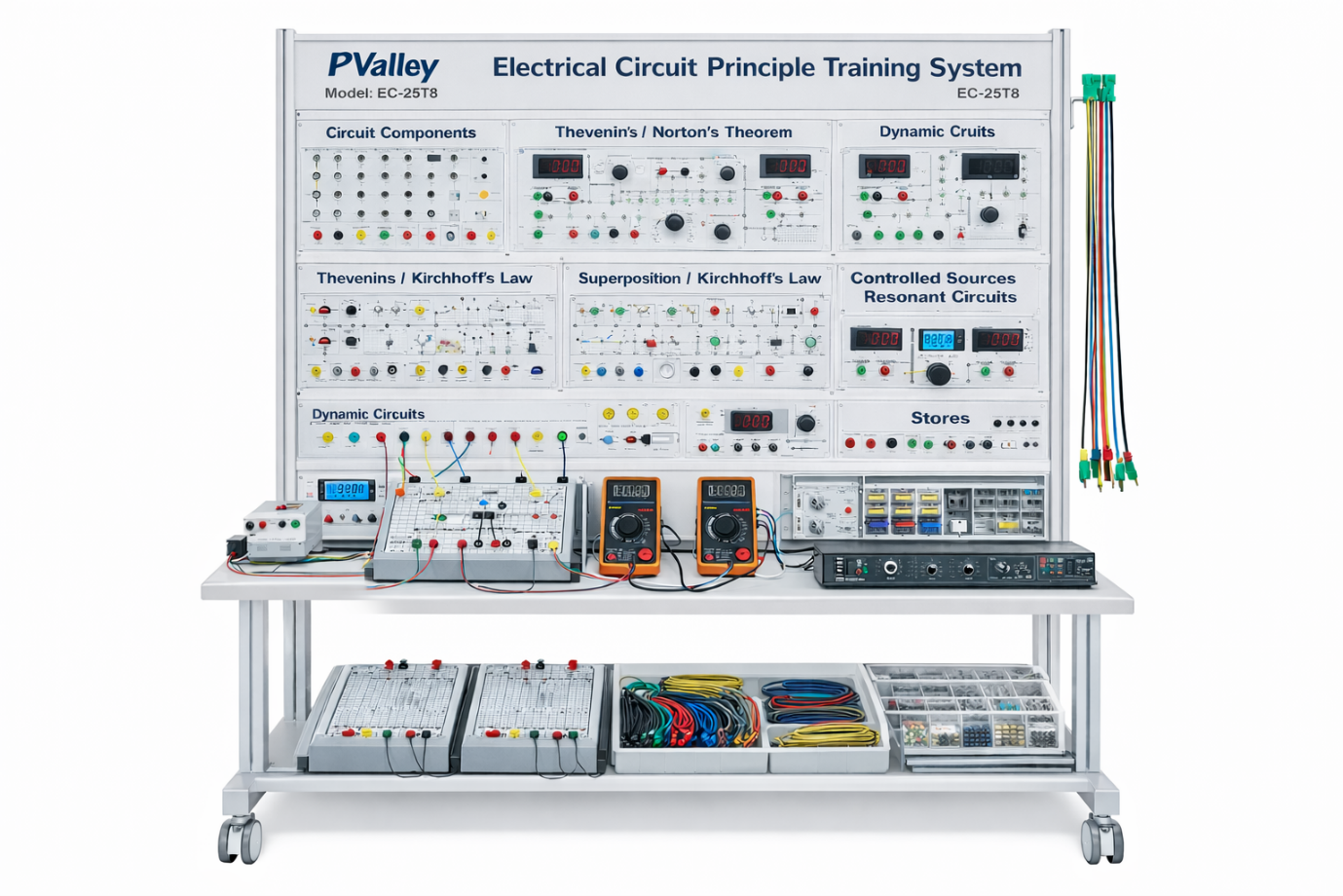

Electrical Circuit Principle Training System

Brand: PValley
Model: EC-25T8
Country of Origin: China
Assemble Manufacturing: Bangladesh



General Specification:

Body Material:

Printed Front Side Sheet

Sheet Type: Digital
Country of origin: China
Feature:

• Sheet number 26
• Storage Printed temperature 300°c
• Color White/Silver

Hard Round support board or Plastic Sheet

Sheet Type: Digital
Country of origin: Pakistan
Feature:

• Sheet thickness 10mm
• Two-Part Combination(Transparent/white)
• UV Printout

Protection System

Brand: Hyundai

Country of origin: South Korea

Feature:

• Safety tripping
• Low insertion loss and high reliability

Panel Box

Brand: Madhav Enterprise
Country of origin: Indian

Features:

• Shape: Rectangular
• Surface Finish: Smooth
• High quality raw material

Best structure

Brand: Altech
Country of origin: Bangladesh
Feature:

• Sheet thickness 5mm
• Sheet (Silver/white)
• Square Shape

Power Monitoring

Brand: UNI-T
Country of origin: China
Feature:

• Self-operating voltage 5V
• Self-Consumption Current 30 mA
• Power Nature
• Two-row for Voltage & Current

Use Connector

Brand: ZHT
Country of origin: China
Feature:

• Banana Female Connector
• Banana Male Connector

Working area:

• Working area: 40*25 inch

Technical Specification:

Power supply:

• Input AC: 220V±10%, power consumption 0.5KVA (Minimum)
• Output DC stabilized voltage: ±12V/1.5A; 5V/1.5A
• Output adjustable DC stabilized voltage: DC 0V to ±24V/1A continuously adjustable, with short- circuit protection and self-recovery function
• Constant current source: 0 to 50mA adjustable constant current source, with open circuit protection
• Safety protection: Dedicated power input and output protection circuit board, with earth protection, leakage and overload protection, error operation protection, etc.

Measuring instrument:

• DC ammeter: 1mA (Minimum)
• DC ammeter: 50mA
• DC voltmeter: 3V
• DC voltmeter: 30V

Function generator:

• Output waveform: Square wave / triangular wave / sine wave
• Amplitude: Sine wave 0 ? 10V (peak-to-peak value 10V, symmetric negative & positive); triangular wave 0?14V (peak-to-peak value 14V, symmetric negative & positive); square wave 0?14V (peak-to-peak value 14V, symmetric negative & positive)
• Frequency range: Four-stage, (10Hz?100Hz) / 100Hz?1KHz) / (1KHz?10KHz) / (10KHz?100KHz)

Experiment modules:

• Components voltage current characteristic research
• Circuit potential research
• Thevenin theorem and Norton theorem
• Superposition theorem and reciprocal theory
• Verification of Kirchhoff’s law
• Capacitance charge-discharge research
• Passive two-port network
• First order dynamic circuit
• Second order dynamic circuit
• AC parameter measurement
• Series, parallel resonant circuit
• Controlled source VCVZ, VCCS circuit
• Gyrator circuit.

Accessories:

• Experiment/User Manual: 01 Set
• Connecting Cord: 01 Set
• Power cord and Set of connector cables 2mm (minimum) supported with the modules
• Power Cord: 01 No
• Connecting Wire & Cable
• Complete 5 days Training Included

Protection:

Over Voltage, Under voltage, Supply and DC Link overvoltage, Phase loss, Drive overload, Instantaneous Over current, short circuit, Ground fault, etc.

Warranty: 1 (One) year with services
