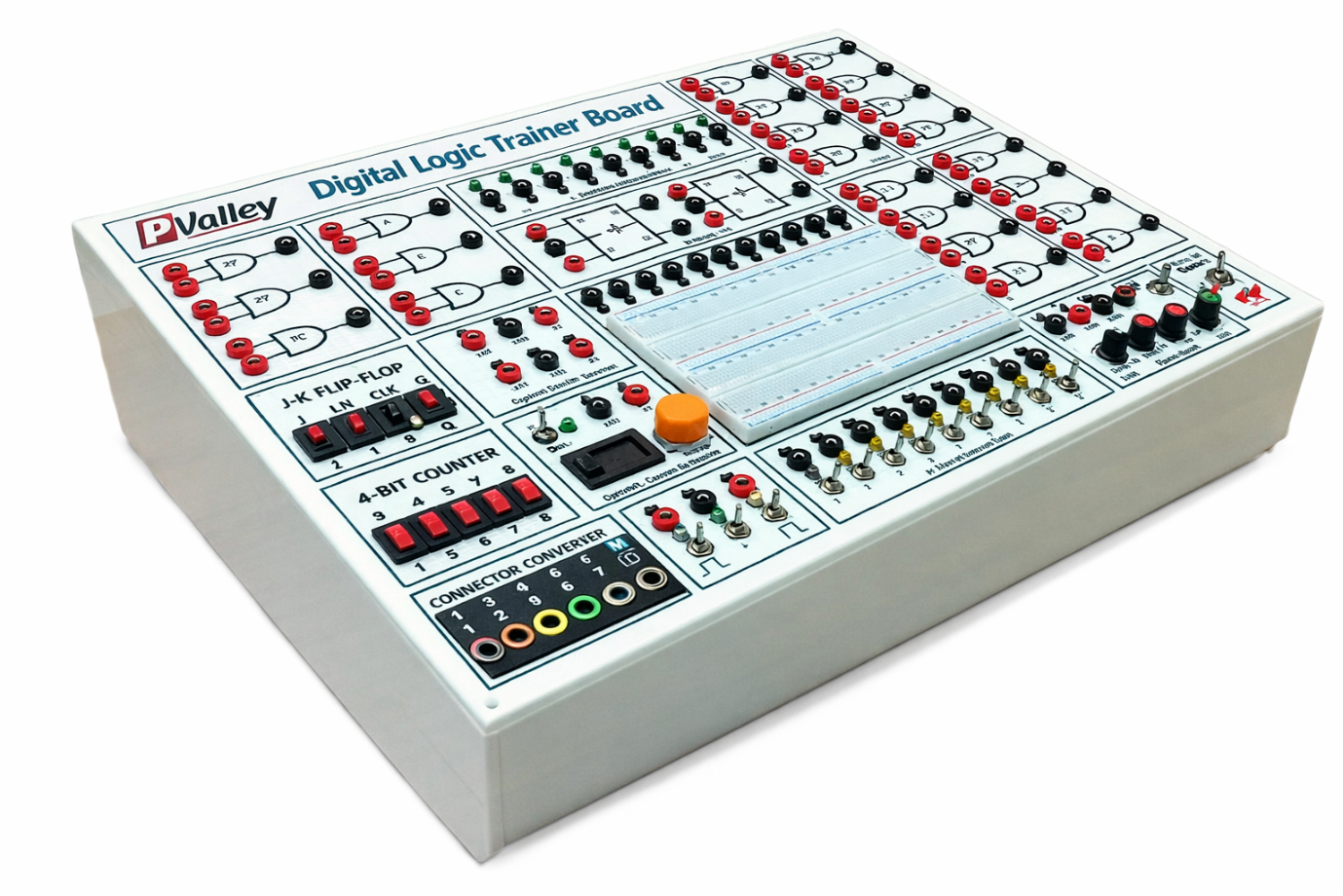

Brand: PValley
Model: DL-525T1
Country of Origin: China
Country of Assemble/Manufacturer: Bangladesh
General Specification:
Body Material:
Printed Front Side Sheet
Sheet Type: Digital
Country of origin: China
Feature:
- Sheet number 26
- Storage Printed temperature 180°c
- Color White/Silver
Hard Round support board or Plastic Sheet
Sheet Type: Digital
Country of origin: Pakistan
Feature:
- Sheet thickness 10mm
- Two-Part Combination(Transparent/white)
- UV Printout
Panel Box
Brand: Madhav Enterprise
Country of origin: Indian
Features:
- Shape: Rectangular
- Surface Finish: Smooth
- High-quality raw material
Best structure
Brand: Altech
Country of origin: Bangladesh
Feature:
- Sheet thickness 5mm
- Sheet (Silver/white)
- Square Shape
Power Monitoring
Brand: UNI-T
Country of origin: China
Feature:
- Self-operating voltage 12V
- Self-Consumption Current 20mA
- Power Nature DC
Use Connector
Brand: ZHT
Country of origin: China
Feature:
- Ban Female Connector Diameter 4.5mm
- Banana Male Connector Diameter 4.5mm
Working area:
- Working area: 20 * 15 inch
Specifications:
- 2-Input AND Gate
- 2-Input OR Gate
- NOT Gate
- 2-Input NAND Gate
- 2-Input NOR Gate
- 2-Input X-OR Gate
- 2-Input X-NOR Gate
- J-K Flip Flop
- 4-Bit Asynchronous/Synchronous Counter
- 8-bit Logic Input Switch
- 8-bit Logic Output Display
- 10 Connector Converter
- Dual Breadboard
- Fixed Voltage Source: +5V, GND, -5V, +15V, GND, -15V
- Variable Voltage Source with Display: 3.3v to 30V
- Clock Generator: Variable 10 KHz to 1 MHz
- Pulse switch with Indicator
- Positive Pulse
- Negative Pulse
- Voltage Level Switch with Indicator
- Positive Voltage Level
- Negative Voltage Level
- Signal Generator (Range, Frequency & Amplitude Control)
- Sine Wave
- Triangular Wave
- Square Wave
Accessories:
- Power Cord: 01 Set
- Connecting Wire & Cable
- Complete 5 days Training Included
- User Manual or User Guide
Protection:
Under voltage, Supply over voltage, Drive overload, Short Circuit etc.
Warranty: 1 (One) year with services
