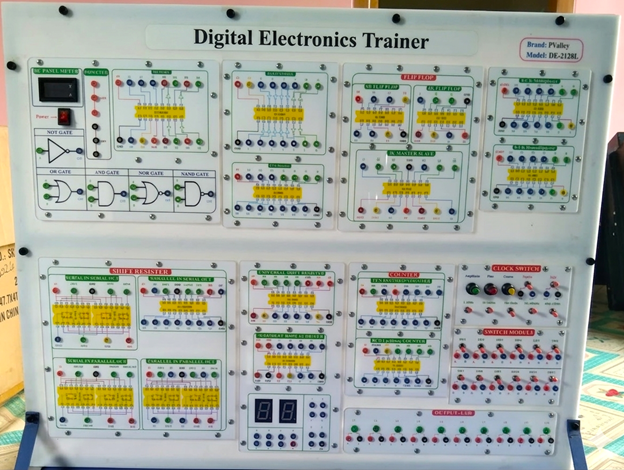

Brand: PValley
Model: DE-2128L
Country of Origin: Japan
Country of Assemble/Manufacturer: Bangladesh
General Specification:
Body Material:
Printed Front Side Sheet
Sheet Type: Digital
Country of origin: China
Feature:
- Sheet number 26
- Storage Printed temperature 300°c
- Color White/Silver
Hard Plastic Sheet
Sheet Type: Digital
Country of origin: Pakistan
Feature:
- Sheet thickness 10mm
- Two-Part Combination (Transparent/white)
- UV Printout
Power supply
Brand: Biologic Tech
Country of origin: Taiwan
Features:
- 24V/5A SMPS Power Supply
Panel Box
Brand: Madhav Enterprise
Country of origin: Indian
Features:
- Shape: Rectangular
- Surface Finish: Smooth
- High quality raw materia
Power Monitorin
Brand: UNI-T
Country of origin: China
Feature:
- Self-operating voltage 12V
- Self-Consumption Current 20mA
- Power Nature
Use Connector
Brand: ZHT
Country of origin: China
Feature:
- Banana Female Connector Diameter 2mm
- Banana Male Connector Diameter 2mm
Working area:
Working area: 34 * 24 inch
Technical Features:
- Self-contained & easy to operate
2. Functional blocks indicated on board mimic
3. Solderless breadboard
4. On board DC Power Supplies
5. On board Pulse Generator with TTL/CMOS mode
6. Pulser switches and 8-bit Data switches
7. Bicolor 8-bit LED display
8. BCD to Seven segment display and Logic probe
9. CMOS/TTL output
10. Free e-learning course
Digital Circuits Development Platform comprises of following blocks:
- DC Power Supplies
- Pulser Switches
- Logic Probe
- TTL/CMOS Mode Selector
- Pulse Generator
- 8-bit Data Switches
- Seven Segment Display
- 8-bit LED Display
Scope of Learning
- Binary addition Half adder, Full adder, 2 bits Binary
- parallel adder
- Binary subtraction
- Binary to Gray code conversion
- Gray code to Binary conversion
- Study of Flip-flops
- 4 bit Binary up-down counter
- Study of Shift Register
- Multiplexer and De-multiplexer Circuits
- Study of CMOS-TTL Interfacing
- Logic Gates
- Universal Gate-Nand/Nor Gate
- EX-OR Gate Implementation
- Demorgan’s Theorem
- EX-OR Gate Application
- Cod Conversion (Binary to Gray and Gray to Binary)
- Binary Adder/Subtractor
- Encoder/Decoder
- Multiplexer/Demultiplexer
- Flip-Flops
- 4-bit Synchronous Binary Counter
- BCD to Seven Segment Decoder
- CMOS Oscillators
- Adder/Subtractor (IC7483)
- 4 Bit Shift Registors 50
Technical Specifications
- Size of Breadboard: 172.5 mm x 128.5 mm,
- Tie Points on Breadboard: 1685 nos (solderless),
- DC Power Supplies: 5V, 1A; -5V, 500 mA (fixed) +3V to+15V, 500 mA (variable), -3V to -15V, 500 mA (variable),
- Pulse Generator: 1Hz to 1MHz in 6 steps (Variable in, between the steps),
- Amplitude: +3V to +15V (CMOS), 5V (TTL),
- Duty Cycle: 50 %, TTL/CMOS output,
- Pulser Switches: 2 nos (Push to on),
- Data Switches: 8 nos (Toggle switches) (TTL/CMOS output),
- Bicolor LED Display: 8 nos (TTL/CMOS input),
- BCD to Seven Segment Display: 2 nos,
- Logic Probe: Logic level indicator (H/L) for, TTL/CMOS mode (7segment display),
- Weight: 3 kgs approximately,
- Dimensions (mm): W 326 x D 252 x H 52,
- Mains Supply: 110-220V ±10%, 50/60Hz),
Included Accessories:
- Breadboards (solderless): 2 nos
- Connecting wires: 20 nos
- 2mm to 1mm patch cords: 8 nos
- 2mm to 2mm patch cords: 8 nos
- Mains cord: 1 no
Standard Accessories
- Power Cord
- Silicone Flexible Connecting Wire 20 Nos
- Experiment Manual and Instructor’s Manual
- Connection Leads and Plugs
- 5 Days In-House Training
Warranty Period: One (2) Year
