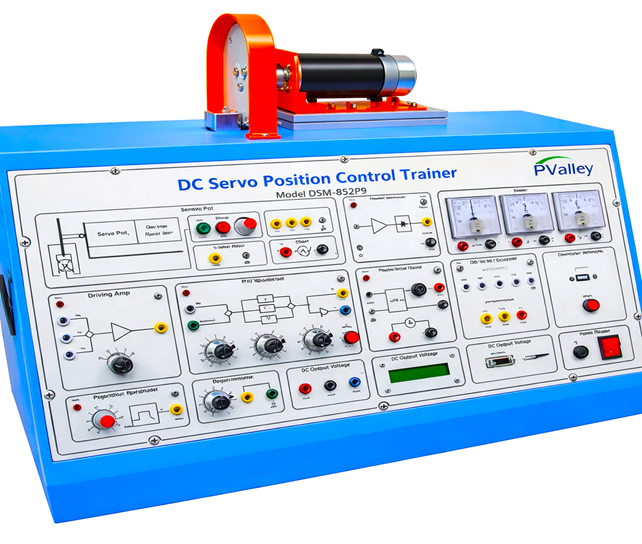

DC Servo Position Control Trainer

Brand: PValley

Model: DSM-852P9

Country of origin: China

Country of Assemble/Manufacturer: Bangladesh



General Specification:

Body Material:

• Best type Printed Sheet

Sheet Type: Digital
Country of origin: China
Feature:

• Sheet number 26
• Storage Printed temperature 300°c
• Color White/Silver
• Hard Round support board or Acrylic Sheet

Sheet Type: Acrylic
Country of origin: Pakistan
Feature:

• Sheet thickness 10mm
• Two-Part Combination (Transparent/white)
• UV Printout
• Safety Breaker.

Brand: Hyundai
Country of origin: South Korea
Feature:

• Human Body Sense safety
• Current error detection range is 20mA
• Soft tripping
• Low noise cut off
• Safety tripping
• Low insertion loss and high reliability

Power supply

Brand: Biologic Tech
Country of origin: Taiwan

Features:

• Variac
• SMPS 24V/5A
• Panel Box

Brand: Madhav Enterprise
Country of origin: Indian

Features:

• Shape: Rectangular
• Surface Finish: Smooth
• High quality raw material
• Best structure.

Brand: Altech
Country of origin: Bangladesh
Feature:

• Sheet thickness 5mm
• Sheet (Silver/white)
• Square Shape
• Power Monitoring

Brand: UNI-T
Country of origin: China
Feature:

• Self-operating voltage 12V
• Self-Consumption Current 20mA
• Power Nature
• Two-row for Voltage & Current
• Use Connector

Brand: ZHT
Country of origin: China
Feature:

• Female Connector Diameter 13mm
• Male Connector Diameter 4.5mm

Working area:

• Working area: 40*25 in

Technical Specification:

Supply Unit:

• Power: 1Φ AC
• DC Power: ± 15V DC
• Computer Interface: RS – 232
• Meter: Speed, Ampere, Voltage each 1EA
• Speed and Position Indicating: 2×16 LCD
• Brake: Eddy Current Type

Control Mode:

• Speed Detector
• Summing Amp Block
• I. D. Controller Block
• Motor Drive Amp Block
• Brake Amp Block
• A/D & D/A Converter Block
• Computer Interface Block
• Square Wave Generator Block
• Position Indicating and Monitor Block
• Counter Output Block (8 Bit Binary)
• Potentiometer Block
• Reset Switch

Machine Device:

• DC Servo Motor
• Balancing Position Control System
• Brake
• Style: Portable Type

Protection System

• Over-Voltage Protection
• Over-Current Protection
• Short-Circuit Protection

Standard Accessories

• Power Cord
• Male to Male Banana Connector
• Experiment Manual and Instructor’s Manual
• Connecting Cord: 1unit
• Interface Cable: 1unit
• Software: 1copy
• 5 Days In-House Training

Warranty: One (1) Year with Services
