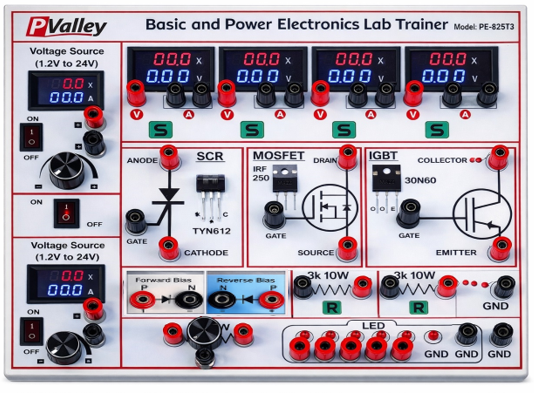

Brand: PValley
Model: PE-825T3
Country of Origin: China
Country of Assemble/Manufacturer: Bangladesh
General Specification:
Body Material:
- Best type Printed Sheet
Sheet Type: Digital
Country of origin: China
Feature:
- Sheet number 26
- Storage Printed temperature 300°c
- Color White/Silver
- Hard Round support board or Acrylic Sheet
Sheet Type: Acrylic
Country of origin: Pakistan
Feature:
- Sheet thickness 10mm
- Two-Part Combination(Transparent/white)
- UV Printout
- Power supply
Brand: Biologic Tech
Country of origin: Taiwan
Features:
- SMPS 24V/5A
- SMPS 12V/5A
- Panel Box
Brand: Madhav Enterprise
Country of origin: Indian
Features:
- Shape: Rectangular
- Surface Finish: Smooth
- High quality raw material
- Best structure.
Brand: Altech
Country of origin: Bangladesh
Feature:
- Sheet thickness 5mm
- Sheet (Silver/white)
- Square Shape
- Power Monitoring
Brand: UNI-T
Country of origin: China
Feature:
- Self-operating voltage 12-24V
- Self-Consumption Current 20mA
- Power Nature
- Two-row for Voltage & Current
- Use Connector
Brand: ZHT
Country of origin: China
Feature:
- Female Connector Diameter 13mm
- Male Connector Diameter 4.5mm
Working area:
- Working area: 18*14 inch
Technical Specifications:
- Capable of showing VI Characteristics of P-N junction Diode, SCR, MOSFET, IGBT.
Diode experiment module
Feature:
- 1N4007 Rectifier Diode
- General purpose silicon rectifier diode
- Reverse voltage rating: up to 1000V
- Forward current: 1A
- Low cost and high reliability
- Suitable for power supply and rectification applications
- 1N5819 Schottky Diode
- Schottky barrier rectifier diode
- Low forward voltage drops
- Fast switching speed
- Forward current: 1A
- Reverse voltage rating: 40V
- Ideal for SMPS, DC-DC converters and high-frequency circuits
IGBT driver module
Features:
- Output Current: 8 A
- Collector- Emitter Voltage VCEO Max: 1.2 KV
- Input Voltage, Max: 15.5 V
- Output Power: 1w
SCR Driving experiment module
Features:
- Provides true linear power output phase angle control and burst fire control
- Small 3.0”x2.5”module mounts in a snap track or a dinrail
- Command input accepts 4-20mA, 0-10V, 0-5V, Pot, PWM
- Configurable line voltage compensation increases stability of your process
- Configurable soft start for high inrush loads
- Wide frequency operation (30 to 90Hz)
- Adjustable Voltage Limit
- Drives multiple solid state relays
- Drives SCR gates directly
- Single phase and three phase control
MOSFET Driving experiment module
Feature:
- Voltage: 3.3V, 5V
- Output load voltage :0-24V
- Output load current: <5A (1A need to add more heat sink)
- Platform: Arduino, MCU, ARM, Raspberry Pi
- Using original IRF520 Power MOS, you can adjust the output PWM.
- Drive up to 24V allows the load, such as LED lights, DC motors, miniature pumps, solenoid valves.
- PWM dimming LED can be used to achieve step less dimming, variable speed motor control
- 6 Digital Volt and Amp. Meter.
- Resistance Load.
- 2 variable Power Supply. Connection Wire.
- Easy and Smooth Connectivity.
- More than 5 practicals’ can be done together.
Experiment List:
- V–I Characteristics of P–N Junction Diode (Forward & Reverse Bias)
- Zener Diode V–I Characteristics and Voltage Regulation
- Half-Wave Rectifier using P–N Diode
- Full-Wave Bridge Rectifier with Ripple Factor Measurement
- V–I Characteristics of Silicon Controlled Rectifier (SCR)
- Gate Triggering Characteristics of SCR
- SCR Half-Wave Controlled Rectifier
- SCR Turn-ON and Turn-OFF Time Measurement
- Drain and Transfer Characteristics of N-Channel MOSFET
- MOSFET as a Switch (Low-Power DC Load Control)
- MOSFET as an Amplifier (Common Source Configuration)
- Determination of MOSFET Threshold Voltage (Vth)
- V–I Characteristics of Insulated Gate Bipolar Transistor (IGBT)
- Switching Characteristics of IGBT (Turn-ON & Turn-OFF Time)
Accessories:
- Power Cord: 01 Set
- Connecting Wire & Cable
- Complete 5 days Training Included
- User Manual or User Guide
Protection:
Under voltage, Supply over voltage, Drive overload, Short Circuit etc.
