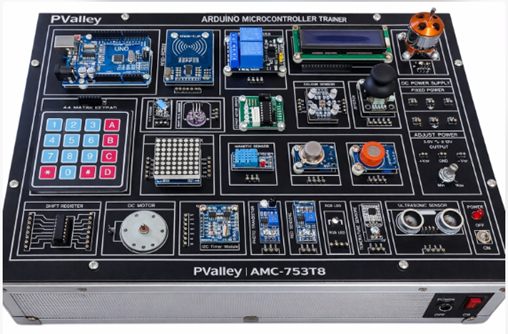

Arduino Microcontroller Trainer

Brand: PValley

Model: AMC-753T8

Country of Origin: China

Country of Assemble/Manufacturer: Bangladesh





General Specification:

Body Material:

Printed Front Side Sheet

Sheet Type: Digital
Country of origin: China
Feature:

• Sheet number 26
• Storage Printed temperature 180°c
• Color White/Black

Hard Plastic Sheet

Sheet Type: Digital
Country of origin: Pakistan
Feature:

• Sheet thickness 10mm
• Two-Part Combination(Transparent/white)
• UV Printout

Power supply

Brand: Biologic Tech
Country of origin: Taiwan

Features:

• 24V/5A SMPS Power Supply

Panel Box

Brand: Madhav Enterprise
Country of origin: Indian

Features:

• Shape: Rectangular
• Surface Finish: Smooth
• High quality raw material

Power Monitoring

Brand: UNI-T
Country of origin: China
Feature:

• Self-operating voltage 12V
• Self-Consumption Current 20mA
• Power Nature

Use Connector

Brand: ZHT
Country of origin: China
Feature:

• Banana Female Connector Diameter 2mm
• Banana Male Connector Diameter 2mm

Working area:

• Working area: 18 * 14 inch

Technical Specification:

The training system should consist of the following 7 modules: (Set of Seven Module with Function Generator & DC Power Supply Module)

Arduino Microcontroller I:

• 8 Bits LED Circuit: Output data length 8 bits and LED display as data display mode
• 6 Bits PWM LED Circuit: Output data length 6 bits and LED display as data display mode
• 4 Bits Push Button Switch Circuit: Output data length 4 bits and LED display as data display mode
• 4 Bits DIP Switch Circuit: Output data length 4 bits and LED display as data display mode
• Self-drive Buzzer
• External Drive Buzzer
• Relay Switch Circuit
• 7-segment Display Circuit

Arduino Microcontroller II:

• 16 * 8 LED Matrix Circuit: Serial data input mode and 16 * 8 LED matrix display as display mode
• 16 * 2 LCD Displayer: Serial data input mode and 16 * 2LCD display as display mode
• 4 * 4 Matrix Keypad: 4 * 4 matrix keypad input mode and 16 * 2
• LCD display as display mode
• ADC Circuit: Analog voltage input mode and 16 * 2 LCD display as display mode
• DAC Circuit: PWM input mode and analog voltage output mode
• DS1307 Clock Module and Full Color RGB LEDS

Applications of Arduino Microcontroller (1):

• Photo Sensor Circuit: Operating wavelength of 500nm~580nm
• Tilt Switch Circuit: Conduction angle of 55 deg – 125 deg
• Vibration Switch Circuit
• Ultrasonic Sensor and Buzzer
• Temperature and Humidity Sensor Board: 0 – 50 deg * C temperature and 20%~90% RH Humidity measurement range

Applications of Arduino Microcontroller (II):

• Magnetic Sensor Circuit: Magnetic field (Sensor mode) and 16 * 2 LCD Display (Display mode)
• Volume Sensor Circuit: Audio (Sensor mode) and LED Display (Display mode)
• Alcohol Sensor Circuit: 100ppm sensitivity
• Gas Sensor Circuit: 5000ppm methane sensitivity
• RFID Sensor Circuit: RFID Tag (Input mode) and 16 * 2LCD Display (Display mode)

Applications of Arduino Microcontroller (III):

• Brushless DC Motor: Push button switch (Input mode) and Brushless DC motor (Output mode)
• Forward and Reverse DC Motor: Push button switch (Input mode) and DC motor of forward or reverse (Output mode)
• Bipolar Stepper Motor: Push button switch (Input mode) and Bipolar stepper motor (Output mode)
• Unipolar Stepper Motor: Push button switch (Input mode) and Unipolar stepper motor (Output mode)
• Servo Motor: Push button switch (Input mode) and Servo motor of angle (Output mode)

Integrated Applications of Arduino Microcontroller (1):

• 74HC595 shift register circuit
• Infrared human body sensor circuit
• XY joystick circuit and Servo motor

Integrated Applications of Arduino Microcontroller (II):

• Infrared gesture detection circuit
• Infrared remote-control circuit
• Countdown timer circuit

Function Generator and DC Power Supply Module:

• Waveforms: Sine, Triangle, Square, TTL Pulse
• Amplitude: >10 Vpp
• Impedance: 500 ±10%
• Duty Control: 30%~60%
• Display: 6-Digit LED Display
• Frequency Range: 10Hz-100 kHz (4 Ranges), 100Hz~1MHz (4 Ranges)
• Frequency Control: Separative Coarse and Fine Tuning
• Constant Voltage Output: 5V, ±12V
• Variable Voltage Output: 0V~±15V
• Power source: 220-230V AC, 50Hz, 1 Phase

Accessories:

• Power Cord: 01 Set
• Connecting Wire & Cable
• Complete 5 days Training Included
• User Manual or User Guide

Protection:

Under voltage, Supply over voltage, Drive overload, Short Circuit etc.

Warranty: 1 (One) year with services
