Brand: PValley
Model: AI-18FDR2
Country of Origin: China
Assemble/ Manufacturer: Bangladesh
General Feature:
Chassis:
- Very handy and simple in assembling/disassembling.
- 5mm transparent acrylic sheet
- Strong components to withstand extreme terrain conditions.
- Transparent Car Chassis.
- Attractive design.
- Double-layer structure, much of mounting holes, enough space
- Easy to install a variety of control panels, sensors
- Educational toys, Ideal for the DIY platform.
BO Motor:
- Operating Voltage: 3V~6V DC
- Gear Ratio 1:48
- No-load speed(5V): about 208RPM
- Rated Torque: 0.8 Kg.cm @ 5V
- Load current: 170mA (when it is 4.5V)
- Size: 70 x 23 x 18 mm
- Weight:28g
- Shaft Length: 10 mm
- Shaft Type: 6 mm, Double-D
Wheel:
- Loading Capacity: Max 2.5Kg
- Double D-hole For BO Motor: 6 mm
- Weight: 34g
- Wheel Diameter: 65 mm
- Color: Black (Tyre), Yellow (Rim)
- Wheel width: 27 mm
- Body Material: Plastic
- Grip Material: Rubber

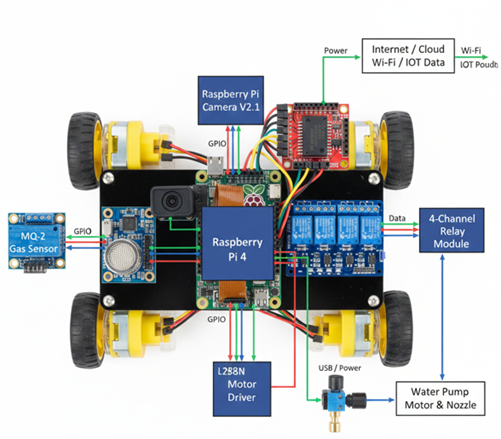

Technical Specification:
- Main Controller Raspberry Pi 4 Model B (4 GB RAM),
- Arduino UNO,
- Camera Module Raspberry Pi Camera (8 MP / 1080p),
- Smoke Sensor MQ-2 / MQ-5 Gas Sensor,
- Motor Driver L298N / TB6612FNG Dual H-Bridge,
- Motors + Wheels 4 × DC geared motors,
- Relay Module 4-channel 5 V DC Relay,
- Power Source 12 V DC Li-ion Battery Pack (4000?6000 mAh),
- Programming Languages- Python (for AI & camera), C/C++ (for Arduino),
- AI Tools-Teachable Machine (fire image detection),
Protection:
- Over-discharge voltage,
- Over-charging voltage,
- Drive overload fault,
- PWM Smart Charging
Accessories:
- Power Cord: 01 set
- Connecting Wire & Cable
- Complete 5 days of Training Included
- User Manual or User Guide
Warranty: Minimum 1 (One) Year
