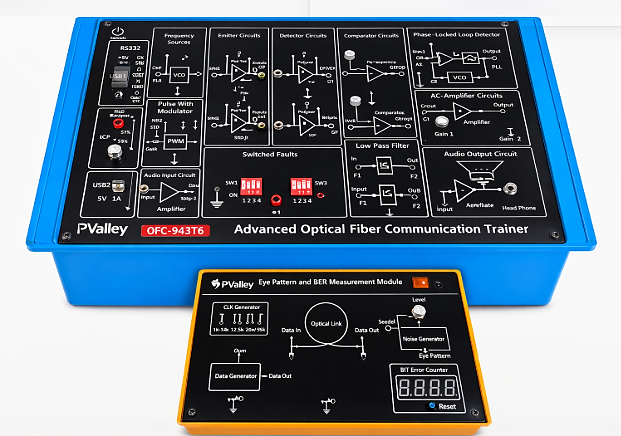

Advanced Optical Fiber Communication Trainer

Brand: PValley

Model: OFC-943T6

Country of Origin: Japan

Country of Assemble/Manufacturer: Bangladesh





General Specification:

Body Material:

Printed Front Side Sheet

Sheet Type: Digital

Country of origin: China

Feature:

• Sheet number 26
• Storage Printed temperature 300°c
• Color White/Silver

Hard Plastic Sheet

Sheet Type: Digital

Country of origin: Pakistan

Feature:

• Sheet thickness 10mm
• Two-Part Combination (Transparent/white)
• UV Printout

Power supply

Brand: Biologic Tech

Country of origin: Taiwan

Features:

• 24V/5A SMPS Power Supply

Panel Box

Brand: Madhav Enterprise

Country of origin: Indian

Features:

• Shape: Rectangular
• Surface Finish: Smooth
• High quality raw materia

Power Monitorin

Brand: UNI-T

Country of origin: China

Feature:

• Self-operating voltage 12V
• Self-Consumption Current 20mA
• Power Nature

Use Connector

Brand: ZHT

Country of origin: China

Feature:

• Banana Female Connector Diameter 2mm
• Banana Male Connector Diameter 2mm

Working area:

Working area: 18 * 14 inch

Technical Specification:

• Transmitter :2 nos.,
• Fiber Optic LED having peak wavelength of emission 660 nm & 950 nm (Optional LASER source)
• Receiver: 2 nos.,
• Fiber Optic Photodetector Modulation Techniques: AM, FM, PWM.
• Drivers :1 no. with Analog & Digital modes AC Amplifier :2 nos.
• Clock: Crystal controlled Clock 4.096 MHz
• PLL detector: 1 no.
• Comparator: 2 nos.
• th Filters :2 nos.
• 4 order Butterworth, 3.4 KHz cut-off frequency
• Analog Band Width :350 KHz
• Digital Band Width: 2.5 MHz
• Function Generator :1 KHz Sine wave (Amplitude adjustable) 1 KHz Square wave (TTL) Voice
• Link: Fiber Optic voice link using microphone & speaker (built in)
• PC-PC Communication: USB
• Baud Rate: 19200
• Switched Faults :4 in
• Transmitter & 4 in Receiver Fiber Optic Cable: Connector type standard
• SMA Cable Type: Step indexed multimode
• PMMA plastic Core Refractive Index :1.492
• Clad Refractive Index :1.406
• Numerical Aperture: Better than 0.5
• Acceptance Angle: Better than 60 deg.
• Fiber Diameter :1000 microns
• Outer Diameter :2.2 mm
• Fiber Length :0.5m & 1m
• Test Points :50 nos.
• Inter connections :2 mm sockets
• Dimensions (mm): W 326 D 252 H 52
• Weight :2.4 Kg approximately
• Power Supply :110 -220 V, ± 10%, 50 / 60 Hz
• Power Consumption :4.5 VA approximately o
• Operating Condition :0-40C, 80% RH

Scope of Learning

• Setting up Fiber Optic Analog & Digital link
• AM system using Analog & Digital input signals
• Frequency Modulation system and Pulse Width Modulation system
• Study of Propagation Loss, Bending Loss & measurement of Numerical Aperture >
• Characteristics of Fiber Optic communication link
• Setting of Fiber Optic voice link using Amplitude, Frequency & PWM
• Modulation study of Switched Faults in AM, FM & PWM system
• Full Duplex Computer Communication using USB and software
• V-I characteristics of LED (E-O converter)
• Characteristics of Photo Detector

Standard Accessories

• Power Cord
• Silicone Flexible Connecting Wire 20 Nos
• Experiment Manual and Instructor’s Manual
• Connection Leads and Plugs
• 5 Days In-House Training

Warranty Period: One (2) Yea
