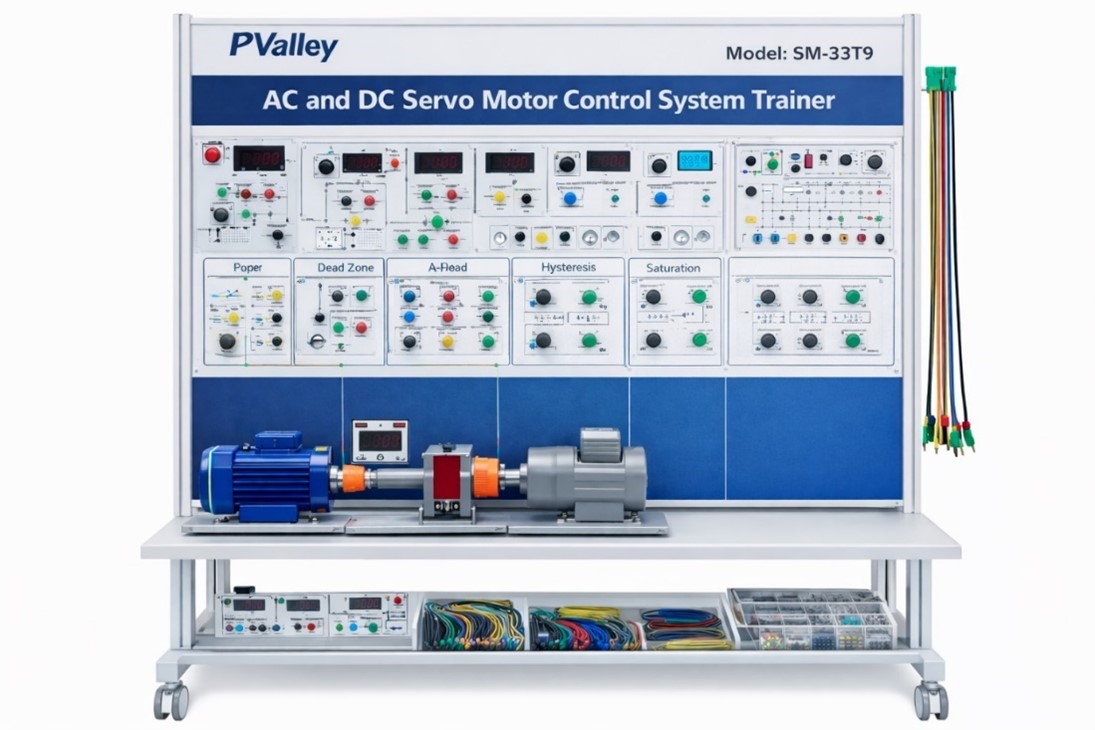

AC and DC Servo Motor Control System Trainer

Brand: PValley
Model: SM-33T9
Country of Origin: China
Assemble Manufacturing: Bangladesh





General Specification:

Body Material:

Printed Front Side Sheet

Sheet Type: Digital
Country of origin: China
Feature:

• Sheet number 26
• Storage Printed temperature 300°c
• Color White/Silver

Hard Round support board or Plastic Sheet

Sheet Type: Digital
Country of origin: Pakistan
Feature:

• Sheet thickness 10mm
• Two-Part Combination (Transparent/white)
• UV Printout

Protection System

Brand: Hyundai

Country of origin: South Korea

Feature:

• Safety tripping
• Low insertion loss and high reliability

Panel Box

Brand: Madhav Enterprise
Country of origin: Indian

Features:

• Shape: Rectangular
• Surface Finish: Smooth
• High quality raw material

Best structure

Brand: Altech
Country of origin: Bangladesh
Feature:

• Sheet thickness 5mm
• Sheet (Silver/white)
• Square Shape

Power Monitoring

Brand: UNI-T
Country of origin: China
Feature:

• Self-operating voltage 5V
• Self-Consumption Current 30 mA
• Power Nature
• Two-row for Voltage & Current

Use Connector

Brand: ZHT
Country of origin: China
Feature:

• Banana Female Connector
• Banana Male Connector

Working area:

• Working area: 40*25 in

Technical Specification:

• Inputs (0 – 10 VDC):
• Motor control signal: 0 to ± 10 VDC
• Generator load control
• Signal conditioning blocks – dead zone, anti-dead zone & saturation: 0 to ± 10 VDC
• Hysteresis block: 0 to ± 10 VDC
• Outputs (0 – 10 VDC):
• Reference Set Point: 0 to ± 10 VDC
• Servomotor shaft speed
• Gearbox position (angle)
• Signal conditioning blocks ? dead zone, anti-dead zone & saturation: 0 to ± 10 VDC
• Hysteresis block
• Other connections: 0 to 10 VDC
• User-adjustable position (angle) setpoint

Accessories:

• Experiment/User Manual: 01 Set
• Connecting Cord: 01 Set
• Power Cord: 01 No
• Connecting Wire & Cable
• Complete 5 days Training Included

Protection:

Over Voltage, Under voltage, Supply and DC Link overvoltage, Phase loss, Drive overload, Instantaneous Over current, short circuit, Ground fault, etc.

Warranty: 1 (One) year with services
