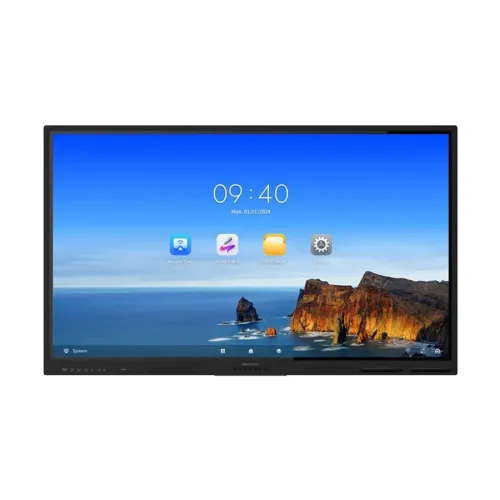

Brand: Hikvision
Model: DS-D5B86RB/EL
Country of Origin: China
Assemble/Manufacturer: China
Technical Features:
- Display Format Native Resolution: 4K Ultra HD 3840 × 2160;
- Aspect Ratio: 16:9;
- Picture Response Time: 5ms;
- Refresh Frequency: 60Hz;
- Pixel Pitch: 0.124 (H) × 0.372 (V) mm;
- Display Colors: 1.07G;
- Brightness (typical): 400 cd/m² (Typ.);
- Contrast Ratio: 5000:1 (Static); 30000:1 (Dynamic);
- Viewing Angle: 178°(H)/178°(V);
- Lifetime: 50,000 hours;
- Others: Surface Haze: 25% Haze;
- Display Area: 1428.48 mm × 803.52 mm;
- Working Duration: 7 × 16H;
- Surface Hardness: 9H (Pencil), 7 (Mohs);
- Surface Glass: 3.2 mm Anti-Glare Glass;
- Transmittance: 88% ± 3;
- Touch System: Touch Point;
- 40-point multi-touch;
- Touch Response Time: ＜ 5 ms;
- Surface Hardness: 9H;
- Interpolation Resolution: 32767 × 32767;
- Others: Minimum Touch Object: ≥ 2 mm (≥ 90% touching area);
- Touch Precision: ± 1 mm (≥ 90% touching area);
Operating System:
- System Version: Android 13.0;
- CPU: Cortex-A55 × 4 (1.92 GHz);
- GPU: Mali-G52 MP2 (2EE);
- RAM: 8GB; ROM: 64GB;
Others:
- HDCP Version: Support 1.4/2.2/2.3;
- HDMI: HDMI In (HDMI 2.0) × 2;
- PC Audio In: Audio In × 1;
- Audio out: Audio Out × 1;
- LAN: LAN (100 Mbps) × 2;
- USB: USB 3.0 × 3, USB 2.0 × 2, Type-C × 1 (Type-C supports USB 2.0);
- RS232: 1x RS232;
- Others: TOUCH-USB 2.0 × 1;
- Physical Specification: Active Screen Size: 86””””(inch);
- Dimensions: 2157 mm × 1345 mm × 223 mm;
- Weight: 59.71 kg;
- Power: 31.2 kg;
- Standby Power: ≤ 0.5 W;
- Power Requirements: 268 W;
- Others: WIFI Station, 4G/5G;
- WIFI AP: IEEE 802.11 a/b/g/n/ac 2 × 2 MIMO (2.4 GHz and 5 GHz) authentication protocols
- WEP, WPA, WPA2, PSK and 802.1X EAP;
- WIFI Station: IEEE 802.11 a/b/g/n/ac/ax 1 × 1 MIMO (2.4 GHz and 5 GHz) authentication protocols WEP, WPA, WPA2, PSK and 802.1X EAP;
- Loudspeaker: Built-in 2 × 20 W; Speaker Frequency:200-20Khz;
- Bluetooth: Built-in BLE (Bluetooth Low Energy) module supports Bluetooth 5.2;
- Support card reader;
- Light Sensor: Yes;
Warranty: 3 Years;
