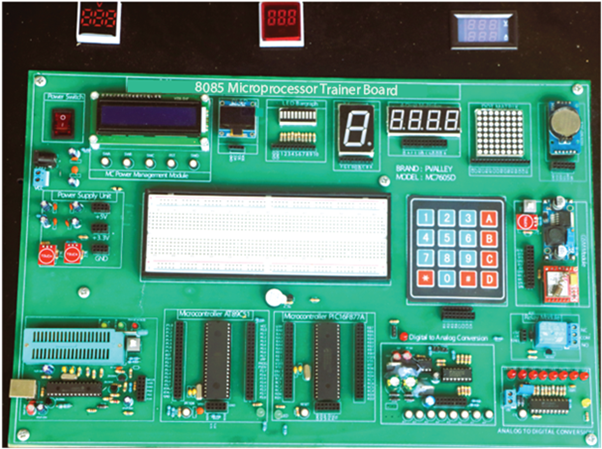

8085 microprocessor trainer board & Simulator

Brand: PValley

Model: MC7605D

Country of Origin: China

Assemble/Manufacturer:  Bangladesh



General Specification:

Body Material:

Printed Front Side Sheet

Sheet Type: Digital
Country of origin: China
Feature:

• Sheet number 26
• Storage Printed temperature 300°c
• Color White/Silver

Hard Plastic Sheet

Sheet Type: Digital
Country of origin: Pakistan
Feature:

• Sheet thickness 10mm
• Two-Part Combination(Transparent/white)
• UV Printout

Power supply

Brand: Biologic Tech
Country of origin: Taiwan

Features:

• 24V/5A SMPS Power Supply

Panel Box

Brand: Madhav Enterprise
Country of origin: Indian

Features:

• Shape: Rectangular
• Surface Finish: Smooth
• High quality raw material

Power Monitoring

Brand: UNI-T
Country of origin: China
Feature:

• Self-operating voltage 12V
• Self-Consumption Current 20mA
• Power Nature

Use Connector

Brand: ZHT
Country of origin: China
Feature:

• Banana Female Connector Diameter 2mm
• Banana Male Connector Diameter 2mm

Working area:

• Working area: 17 * 13 inch

Technical Specification:

• Microprocessor 8086 (16-bit microprocessor, 40-pin DIP)
• CPU-8086
  • Clock Frequency 3 MHz (typical), onboard crystal oscillator
  • Memory – RAM: 64kb (62256 x 2);
    – Monitor ROM: 64kb (27256 x 2);
  • Input/Output (I/O) – 8255a for I/O interfacing
    – Additional I/O lines via expansion connectors
  • Display – 6 or 8-digit 7-segment LED display
    – 16×2 LCD (in some models)
  • System clock: 14.7456mhz
  • Clock generator: 8284 (clock generator);
  • Interrupt controller: 8259
  • Keyboard Hexadecimal keypad (16 keys) and/or ASCII keyboard input
  • Monitor Program Inbuilt monitor program to enter/edit/view machine code
  • Programming Support – Hex code entry
    – Run, Single-step, Halt, and Reset functionalities

• Clock Frequency 3 MHz (typical), onboard crystal oscillator
• Memory – RAM: 2KB to 4KB (Expandable)
  – Monitor ROM: 8KB EPROM (e.g., 2764/2732)
• Input/Output (I/O) – 8255 PPI for I/O interfacing
  – Additional I/O lines via expansion connectors
• Display – 6 or 8-digit 7-segment LED display
  – 16×2 LCD (in some models)
• Keyboard Hexadecimal keypad (16 keys) and/or ASCII keyboard input
• Monitor Program Inbuilt monitor program to enter/edit/view machine code
• Programming Support – Hex code entry
  – Run, Single-step, Halt, and Reset functionalities
• Power Supply +5V regulated DC (±12V optional for some models)
• Connectivity – RS-232 / USB interface for PC communication (optional)
  – Serial port for serial I/O
• Expansion Slots Provided for interfacing modules (ADC, DAC, Stepper motor, 8251, 8253, etc.)
• Software Tools PC-based 8085 simulator software (optional), Assembly code editor
• Construction Rugged casing with labeled PCB and test points
• Learning Support LED indicators for status, address/data lines, control signals

Accessories:

• Power Cord: 01 Set
• Connecting Wire & Cable
• Complete 5 days Training Included
• User Manual or User Guide

Protection:

Under voltage, Supply over voltage, Drive overload, Short Circuit etc.
