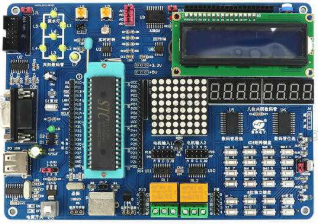

8051 Microcontroller MCU Learning Development Board

Brand: PValley
Model: 8051 Microcontroller MCU Board
Country of Origin: China
Country of Manufacturing: Bangladesh

Features:

• 8×8 Dot matrix Screen
• Water Lamp
• Two Relay control
• Infrared Transmitter and Receiver
• Multiple Sensor Pin

STC89C52RC Features:

1. Enhanced 80C51 Central Processing Unit, 6T or 12T per machine cycle
2. Operation voltage range: 5.5V – 3.3V (STC89LE series) or 2.0 V – 3.6V (STC89LE series)
3. Operation frequency range: 0-48MHz@12T or 0-24MHz@6T
4. On-chip 4/8/13/16/20/32/64K FLASH program memory with flexible ISP/IAP capability
5. On-chip 1280 byte / 512 byte RAM
6. Be capable of addressing up to 64K byte of external RAM
7. Be capable of addressing up to 64K bytes external memory
8. Dual Data Pointer (DPTR) to speed up data movement
9. Three 16-bit timer/counter, Timer 2 is an up/down counter with programmable clock output on P1.0
10. 8 vector-address, 4 level priority interrupt capability
11. One enhanced UART with hardware address-recognition, frame-error detection function, and with self baudrate generator.
12. One 15 bits Watch-Dog-Timer with 8-bit pre-scaler
13. Integrate MAX810 ? specialized reset circuit
14. Three power management modes: idle mode and power-down mode
15. Low EMI: inhibit ALE emission
16. Power down mode can be woken-up by INT0/P3.2 pin, INT1/P3.3 pin, T0/P3.4, T1/P3.5, RXD/P3.0 pin, INT2/P4.3, INT3/P4.2
17. Maximum 39 programmable I/O ports are available
18. Four 8-bit bi-directional ports; extra four-bit additional P4 are available for PLCC-44 and LQFP-44
19. Operating temperature: -40 ~ +85°C (industrial) / 0~75°C (commercial) RoboticsBD
    20. Package type: LQFP-44, PDIP-40, PLCC-44

• Package Includes:
  • 1 x 8051 MCU Learning Development Board Kit
  • 1 x Laser engraving wooden development box
  • 1 x STC89C52RC-51 MCU chip
  • 1 x 8×8 LED dot matrix screen
  • 1 x LCD1602 LCD display
  • 1 x 5-wire 4-phase stepper motor
  • 1 x 5V DC motor
  • 1 x Infrared remote control
  • 1 x Temperature sensor
  • 1 x Close sensitive resistance sensor
  • 1 x Thermistor sensor
  • 1 x CR1220 clock circuit battery
  • 1 x USB download data cable
  • 10 x 20cm high-quality Dupont wire
  • 1 x 11mm copper pillar pad
• Warranty: 12 months from the date of supply.
