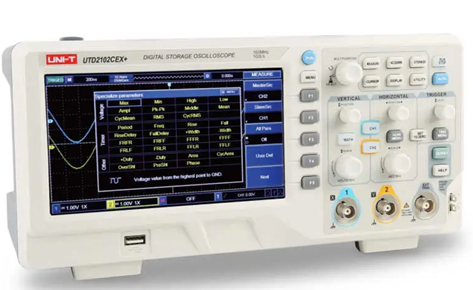

100Mhz Oscilloscope 2-Channel Digital Storage 1Gs/S

Brand: UNI-T

Model: UTD2102CEX+

Country of Origin: China

Assemble/Manufacturer: China

Technical Features:

• Channels 2;
• Bandwidth 100MHz;
• Sampling rate 1GS/s;
• Rise time ＜5ns;
• Memory depth 64kpts;
• Waveform capture rate >5, 000wfms/s;
• Vertical scale (V/div) 1mV/div~20V/div;
• Time base scale (s/div) 2ns/div~50s/div;
• Timing accuracy ≤± （50+2 × service life）ppm;
• Time base mode Y-T、X-Y, Roll;
• Storage methods: Setup, wave, bitmap;
• Trigger types Edge, pulse width, alternate Slope, video;
• Mathematical operations ＋, －, ×, ÷, FFT;
• Auto measurements Pk-Pk , Ampl, Max , Min, Low, Middle, High, Mean, RMS， OverSht, PreSht, Period, Frequency Rise, Fall, +Width，-Width, -Duty, +Duty, Delay,Phase，FRR, FRF, FFR, FFF, LRR,LRF,LFR,LFF,34 parameters in total

Displayed measurements

• Display 5 measurements at the same time;
• Frequency counter 6 bits;
• Interface USB OTG, Pass/Fail;
• General Characteristics: Power 100-240VAC, 45-440Hz;
• Display 7 inches TFT LCD, 800×480;
• Product color White and grey;
• Product net weight 3.5kg;
• Product size: 336 mm × 164 mm × 108 mm;
